ITEM NO.

DESCRIPTION

PICTURE / UNITPRICE

SPECIFICATIONS

CR2.8

Non Stretch Cord, White / Color, Dia. 2.8 m/m

Min.Q'ty 7200
Packing 300m / Roll
3600m / Carton
Nw(kgs) 19.40kgs
Gw(kgs) 20.90kgs
Meas( ' ) 1.6'

CR3.0

Non Stretch Cord, White / Color, Dia. 3.0 m/m

Min.Q'ty 7200
Packing 300m / Roll
3600m / Carton
Nw(kgs) 23.00kgs
Gw(kgs) 24.50kgs
Meas( ' ) 1.9'

SCN-19BH

Cone and plug , for 6mm hexagon , for Roll Cord Shaft support M50-3-HS , V50T-3-HS, V50HT-3-HS

Min.Q'ty 2000
Packing
2000sets/carton
Nw(kgs)
Gw(kgs)
Meas( ' )

SCN-19H

with somfy's pattern cone and plug , for 6mm hexagon , for Roll Cord Shaft support M50-3-HS , V50T-3-HS, V50HT-3-HS

Min.Q'ty 2000
Packing
2000sets/carton
Nw(kgs)
Gw(kgs)
Meas( ' )

TR-M6.0H

Tilt Metal Rod : Hexagon Rod Type, side to side 6.0m/m

Min.Q'ty 300
Packing 3m / Pc
20~50pcs / Roll
Nw(kgs) 44.50kgs
Gw(kgs) 45.00kgs
Meas( ' ) 0.28'

TR-M6.0S

Tilt Metal Rod : Square Rod Type, side to side 6.0m/m

Min.Q'ty 300
Packing 3m / Pc
20~50pcs / Roll
Nw(kgs) 44.50kgs
Gw(kgs) 45.00kgs
Meas( ' ) 0.28'

TR-M6.3S

Tilt Metal Rod : Square Rod Type, side to side 6.3m/m

Min.Q'ty 300
Packing 3m / Pc
20~50pcs / Roll
Nw(kgs) 44.50kgs
Gw(kgs) 45.00kgs
Meas( ' ) 0.28'

TUN-2X104

Tune-Tool For 2mm inside Hexagon screw 2mmX104mm

Min.Q'ty 1
Packing
Nw(kgs)
Gw(kgs)
Meas( ' )

TUN-2X60

Tune-Tool For 2mm inside Hexagon screw 2mmX60mm

Min.Q'ty 1
Packing
Nw(kgs)
Gw(kgs)
Meas( ' )

V50H-32A6

Alum. Stop-Ring, Any size available, 6.8X12mm,(for 5mm Square) , For tilt rod end stop

Min.Q'ty 2000
Packing 500pcs / Bag
5000pcs / Carton
Nw(kgs) kgs
Gw(kgs) kgs
Meas( ' ) '

V50H-55D

Ball Chain & Cord Fixer, Plastic Clear, without screw (V50H-55D+2S With 2 pcs screws)

Min.Q'ty 2000
Packing 500pcs / Bag
2500pcs/ Carton
Nw(kgs) 22.7kgs
Gw(kgs) 23.7kgs
Meas( ' ) '2.4'

V50H-55R

Ball Chain & Cord Fixer, Plastic Clear (V50H-55R+2S With 2 pcs screws)

Min.Q'ty 2000
Packing 500pcs / Bag
2500pcs/ Carton
Nw(kgs) 22.7kgs
Gw(kgs) 23.7kgs
Meas( ' ) 2.4'

V50H-55RS

Ball Chain & Cord Fixer, Small 10mmX38mm , Plastic Clear (V50H-55RS+1S With 1 pc screws)

Min.Q'ty 2000
Packing 500pcs / Bag
2500pcs/ Carton
Nw(kgs) 12.7kgs
Gw(kgs) 13.7kgs
Meas( ' ) 2.4'

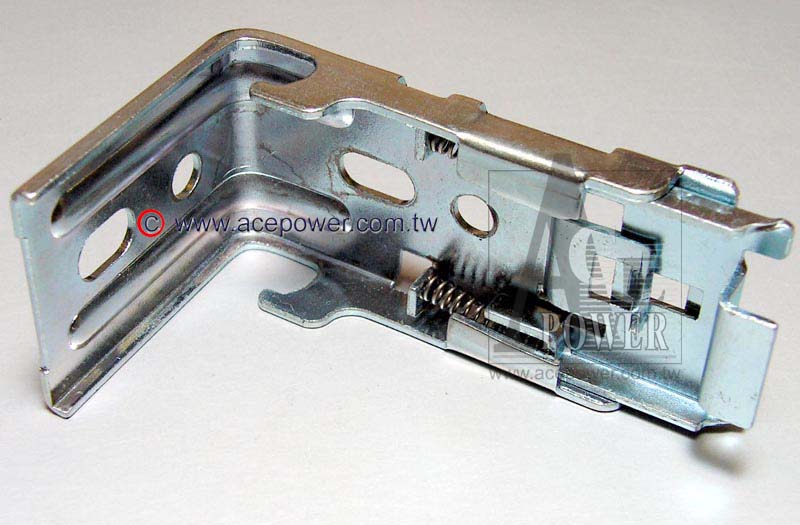

V50H-59

L Spring Bracket For Head rail

Min.Q'ty 600
Packing 100pcs / Bag
600pcs / Carton
Nw(kgs) 24.00kgs
Gw(kgs) 25.00kgs
Meas( ' ) 1.2'

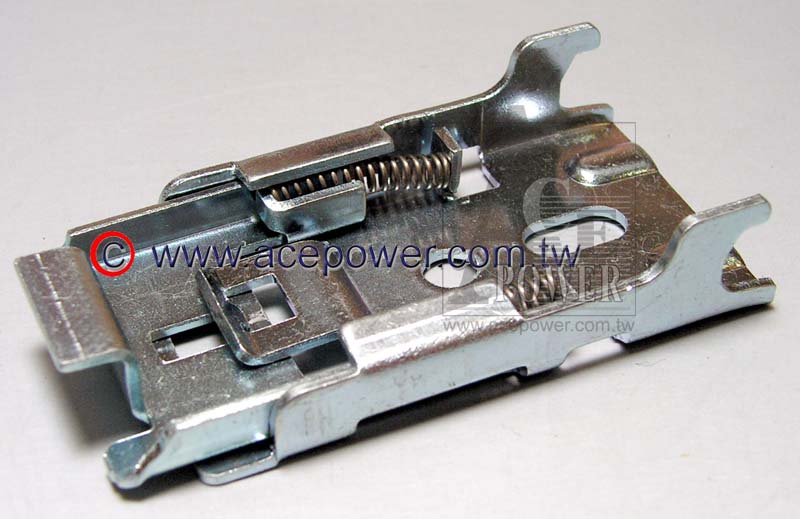

V50H-59C

Ceiling Spring Bracket For Head rail

Min.Q'ty 600
Packing 100pcs / Box
600pcs / Carton
Nw(kgs) 22.00kgs
Gw(kgs) 23.00kgs
Meas( ' ) 1.0'

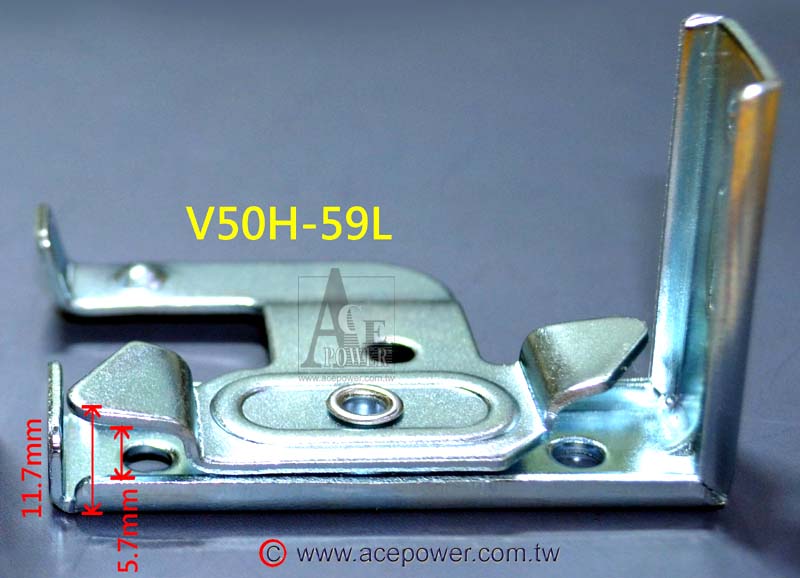

V50H-59L

L Swivel Bracket for Head Rail 58mm x 50mm ( V50H-42 ), ( Without Spring )

Min.Q'ty 600
Packing 100pcs / Box
600pcs / Carton
Nw(kgs) 24.00kgs
Gw(kgs) 25.00kgs
Meas( ' ) 1.2'

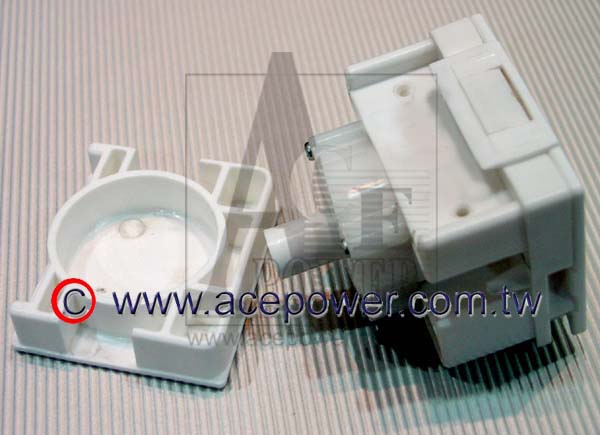

V50HT-2Y-6.3S (1:1.4)

Control Unit : For Chain or Cord Operated Monocontrol Blind, Side Type, For 6.3mm Square Rod, Gear Ratio : (1:1.4)

Min.Q'ty 100
Packing
100sets/carton
Nw(kgs) 11kgs
Gw(kgs) 12kgs
Meas( ' ) 1.35'

V50HT-2Y-6.3S (1:5)

Control Unit : For Chain or Cord Operated Monocontrol Blind, Side Type, For 6.3mm Square Rod, Gear Ratio : (1:5)

Min.Q'ty 100
Packing
100sets/carton
Nw(kgs) 11kgs
Gw(kgs) 12kgs
Meas( ' ) 1.35'

V50HT-2Y-6.3S (1:7)

Control Unit : For Chain or Cord Operated Monocontrol Blind, Side Type, For 6.3mm Square Rod, Gear Ratio : (1:7)

Min.Q'ty 100
Packing
100sets/carton
Nw(kgs) 11kgs
Gw(kgs) 12kgs
Meas( ' ) 1.35'

V50HT-2Y-H (1:1.4)

Control Unit : For Chain or Cord Operated Monocontrol Blind, Side Type, For 6mm Hexagon Rod, Gear Ratio : (1:1.4)

Min.Q'ty 100
Packing
100sets/carton
Nw(kgs) 11kgs
Gw(kgs) 12kgs
Meas( ' ) 1.35'

V50HT-2Y-H (1:5)

Control Unit : For Chain or Cord Operated Monocontrol Blind, Side Type, For 6mm Hexagon Rod, Gear Ratio : (1:5)

Min.Q'ty 100
Packing
100sets/carton
Nw(kgs) 11kgs
Gw(kgs) 12kgs
Meas( ' ) 1.35'

V50HT-2Y-H (1:7)

Control Unit : For Chain or Cord Operated Monocontrol Blind, Side Type, For 6mm Hexagon Rod, Gear Ratio : , (1:7)

Min.Q'ty 100
Packing
100sets/carton
Nw(kgs) 11kgs
Gw(kgs) 12kgs
Meas( ' ) 1.35'

V50HT-2Y-S (1:1.4)

Control Unit : For Chain or Cord Operated Monocontrol Blind, Side Type, For 6mm Square Rod, Gear Ratio : (1:1.4)

Min.Q'ty 100
Packing
100sets/carton
Nw(kgs) 11kgs
Gw(kgs) 12kgs
Meas( ' ) 1.35'

V50HT-2Y-S (1:5)

Control Unit : For Chain or Cord Operated Monocontrol Blind, Side Type, For 6mm Square Rod, Gear Ratio : (1:5)

Min.Q'ty 100
Packing
100sets/carton
Nw(kgs) 11kgs
Gw(kgs) 12kgs
Meas( ' ) 1.35'
