ITEM NO.

DESCRIPTION

PICTURE / UNITPRICE

SPECIFICATIONS

SCN-19BH

Cone and plug , for 6mm hexagon , for Roll Cord Shaft support M50-3-HS , V50T-3-HS, V50HT-3-HS

Min.Q'ty 2000
Packing
2000sets/carton
Nw(kgs)
Gw(kgs)
Meas( ' )

SCN-19H

with somfy's pattern cone and plug , for 6mm hexagon , for Roll Cord Shaft support M50-3-HS , V50T-3-HS, V50HT-3-HS

Min.Q'ty 2000
Packing
2000sets/carton
Nw(kgs)
Gw(kgs)
Meas( ' )

TR-M6.0H

Tilt Metal Rod : Hexagon Rod Type, side to side 6.0m/m

Min.Q'ty 300
Packing 3m / Pc
20~50pcs / Roll
Nw(kgs) 44.50kgs
Gw(kgs) 45.00kgs
Meas( ' ) 0.28'

V25-01-1

STEEL HEAD RAIL, 24mm x 26mm ,PAINTED

Min.Q'ty 900m/color
Packing 5meter/pc
18sets/ctn
Nw(kgs)
Gw(kgs)
Meas( ' )

V25-03-6Z

25mm Metal with Plastic Installation Bracket, Plate with Nickel (Nickel-Plating)

Min.Q'ty 1000
Packing 100pcs/Bag
1000 pcs/Carton
Nw(kgs) 15.5kgs
Gw(kgs) 16.5 kgs
Meas( ' ) 0.88

V25-03-6ZL75

Adjustable Extend METAL WITH PLASTIC INST. BRACKET AND L(75mm) METAL , PLATED

Min.Q'ty 200
Packing 100pcs/Bag
200 pcs/Carton
Nw(kgs)
Gw(kgs)
Meas( ' )

V25-03-7JE

BOX Metal BRACKET , PAINTED, For 24X26mm

Min.Q'ty 1200
Packing 600pcs/Bag
600 pcs/Carton
Nw(kgs) 12.00kgs
Gw(kgs) 13.00kgs
Meas( ' ) 1.3'

V25-08-1D

METAL ROD, 4mm D type

Min.Q'ty 900
Packing 3m / Pc
20pcs / Carton
Nw(kgs) 23.00kgs
Gw(kgs) 23.50kgs
Meas( ' ) 0.63'

V25-08-4S

Tilt Metal Rod : Square Rod Type, side to side 4.0m/m

Min.Q'ty 900
Packing 3m / Pc
20pcs / Carton
Nw(kgs) 23.00kgs
Gw(kgs) 23.50kgs
Meas( ' ) 0.63'

V25-08-5R

METAL ROD, 2.6X4.3mm Rectangle

Min.Q'ty 900
Packing 3m / Pc
20pcs / Carton
Nw(kgs) 23.00kgs
Gw(kgs) 23.50kgs
Meas( ' ) 0.63'

V25-15-2

HEX. EMPTY TILT Wand, side between 7mm, Inside hole: dia. 3mm

Min.Q'ty 3000
Packing 3Meter/pc
200pcs/carton
Nw(kgs)
Gw(kgs)
Meas( ' )

V25-15-2N

HEX. EMPTY TILT Wand, Thin Type, side between 7mm, Inside hole: dia. 4.8mm

Min.Q'ty 3000
Packing 3Meter/pc
200pcs/carton
Nw(kgs)
Gw(kgs)
Meas( ' )

V25-15-CC

Plastic Cord Cleat, Clare, 2 pcs/set , Clip on 7mm Hex. TILT Wand

Min.Q'ty 3000
Packing 1000pcs/bag,
10000pcs/carton
Nw(kgs)
Gw(kgs)
Meas( ' )

V25-A1P

Alum. HEAD RAIL, for 24X26mm system, Painted , Outside size: 23.5X27.6mm , Inside width=20.7X25mm, Thickness=1.3mm

Min.Q'ty 0
Packing
Nw(kgs)
Gw(kgs)
Meas( ' )

V25-A1Z

Alum. HEAD RAIL, for 24X26mm system, Plated , Outside size: 23.5X27.6mm , Inside width=20.7X25mm, Thickness=1.3mm

Min.Q'ty 0
Packing
Nw(kgs)
Gw(kgs)
Meas( ' )

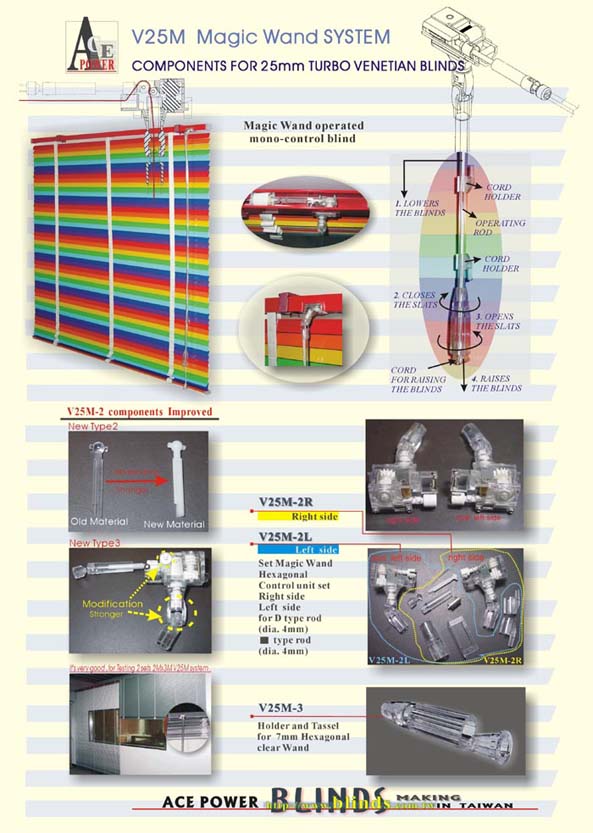

V25M-3

Handle And Tassel For 7mm Hexagonal Clear Wand

Min.Q'ty 500
Packing
Nw(kgs)
Gw(kgs)
Meas( ' )

V25T-1AP

Alum. Head rail 30mm x 30mm, Painted, White , can Insert Alum. Slat

Min.Q'ty 580
Packing 5.8meter/pc
Nw(kgs)
Gw(kgs)
Meas( ' )

V25T-1AZ

Alum. Head rail 30mm x 30mm, Plated, White , can Insert Alum. Slat

Min.Q'ty 580
Packing 5.8meter/pc
Nw(kgs)
Gw(kgs)
Meas( ' )

V25T-2L(1:1)

Control Unit : For Chain or Cord operated , Left side, WHITE. Max. Loading:12kgw (1:1), Short Type

Min.Q'ty 200
Packing
200pcs/Carton
Nw(kgs) 11kgs
Gw(kgs) 12.5kgs
Meas( ' ) 1.1'

V25T-2L(1:4)

Control Unit : For Chain or Cord operated , Left side, WHITE. Max. Loading:12kgw (1:4)

Min.Q'ty 200
Packing
200pcs/Carton
Nw(kgs) 11kgs
Gw(kgs) 12.5kgs
Meas( ' ) 1.1'

V25T-2R(1:1)

Control Unit : For Chain or Cord operated, Right side, WHITE. Max.Loading: 12kgw (1:1), Short Type

Min.Q'ty 200
Packing
200pcs/Carton
Nw(kgs) 11kgs
Gw(kgs) 12.5kgs
Meas( ' ) 1.1'

V25T-2R(1:4)

Control Unit : For Chain or Cord operated, Right side, WHITE. Max.Loading: 12kgw (1:4)

Min.Q'ty 200
Packing
200pcs/Carton
Nw(kgs) 11kgs
Gw(kgs) 12.5kgs
Meas( ' ) 1.1'

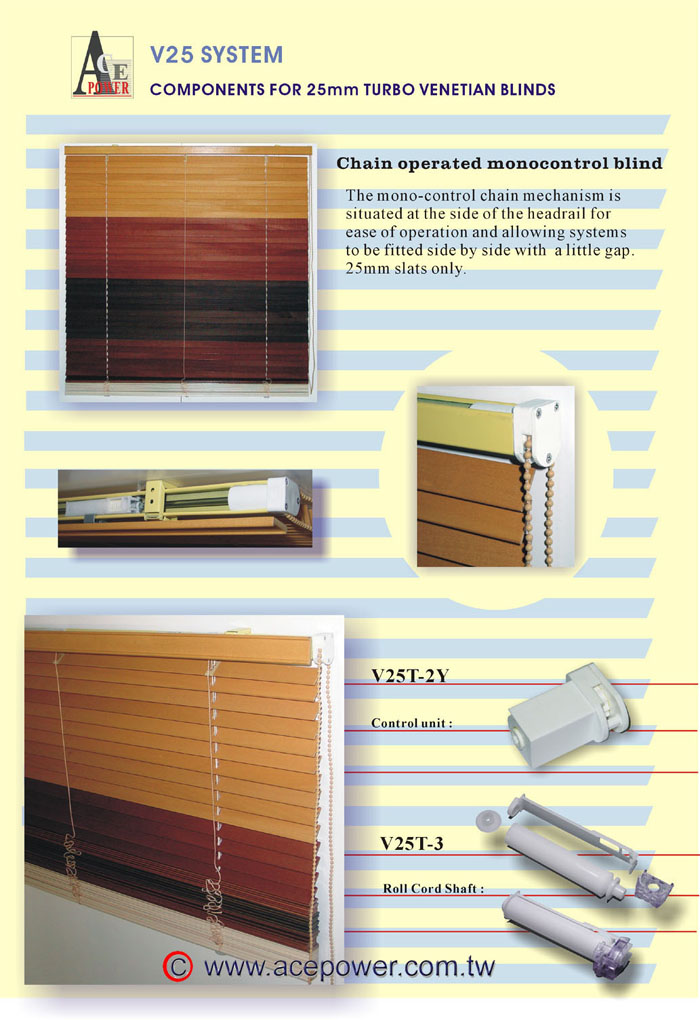

V25T-2Y

Control Unit : For Chain Operated Monocontrol Blinds, Side Type

Min.Q'ty 250
Packing
Nw(kgs)
Gw(kgs)
Meas( ' )

V25T-3

Roll Cord Shaft : Smooth Column Type, (Buy from Somfy Co.), for 6.0mm Hexagon rod , CAN BE USED IN LADDER STRING

Min.Q'ty 500
Packing
Nw(kgs)
Gw(kgs)
Meas( ' )
