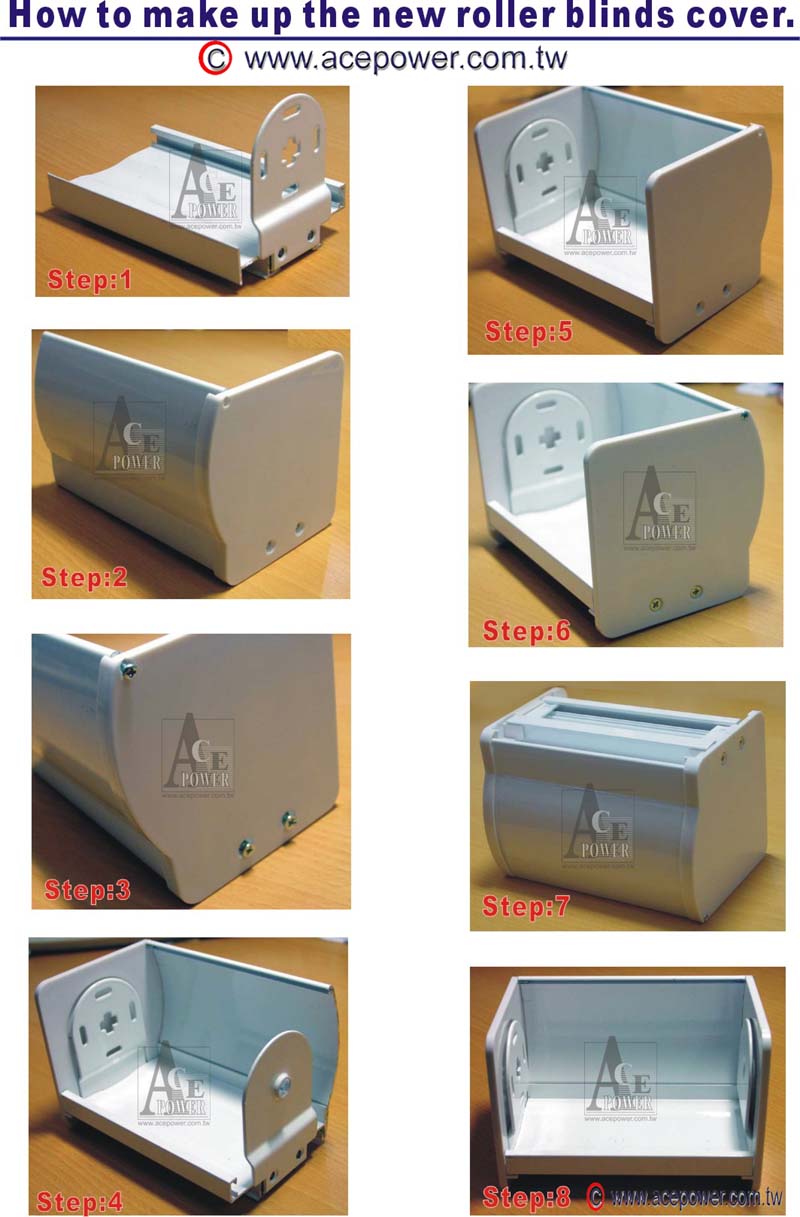

Assemble RVB-system

How to assemble RVB Roller Blinds

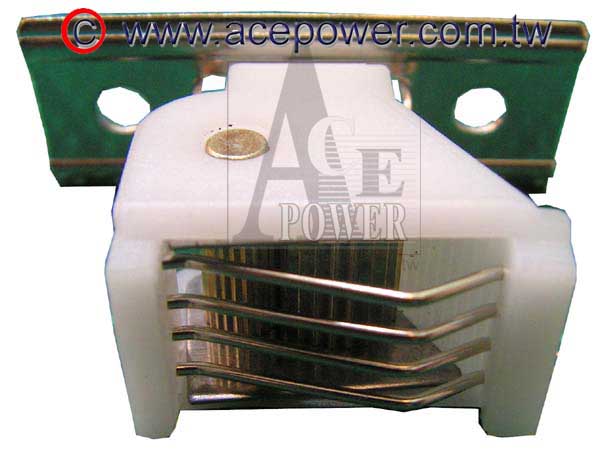

M22-06-4

CORD LOCK, 4 PIN

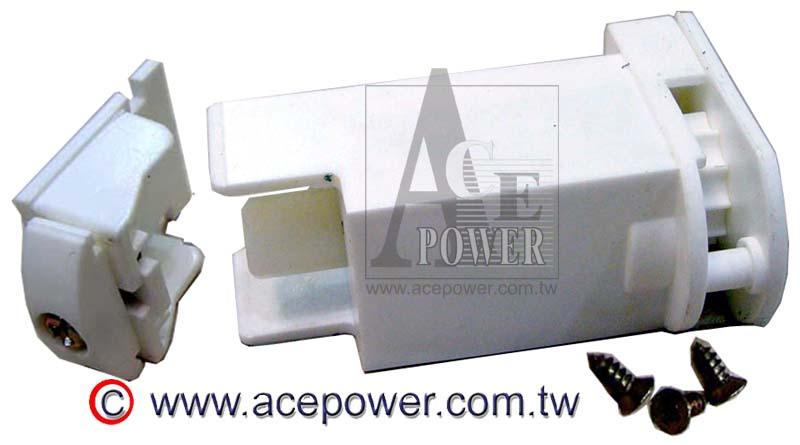

M27-02F(1:4)

Control Unit : + IDLE End, (1:4),Heavy-duty Type

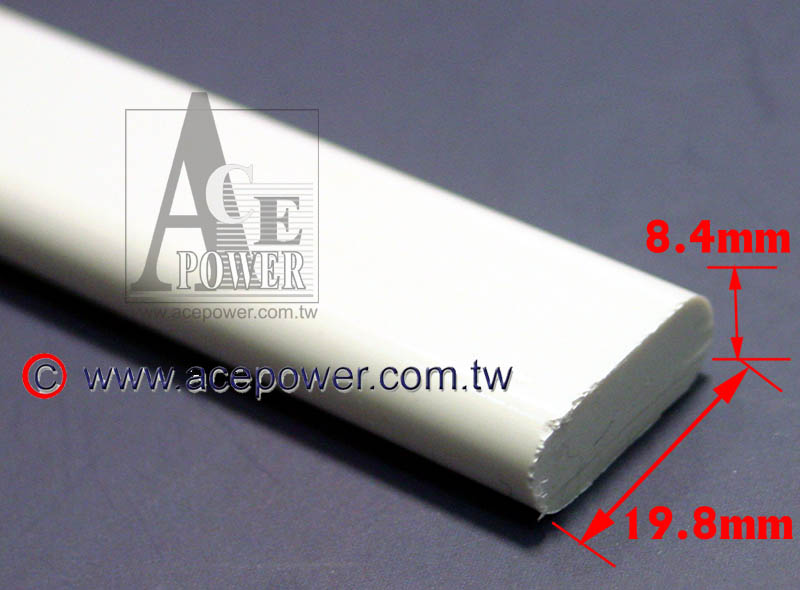

M27-06-P20

PVC Bottom Rail 19.8mmX8.4mm, White ,250g/m,4meter/pc, 5meter/pc 5.8meter/pc

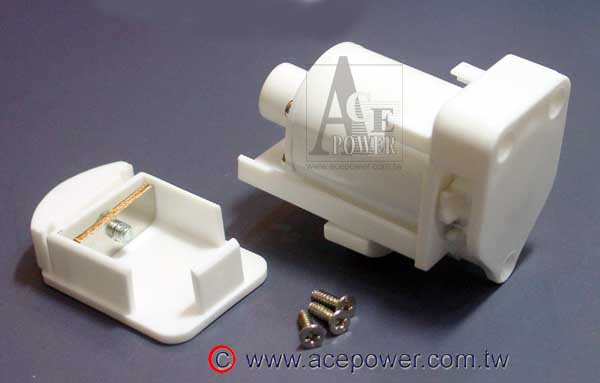

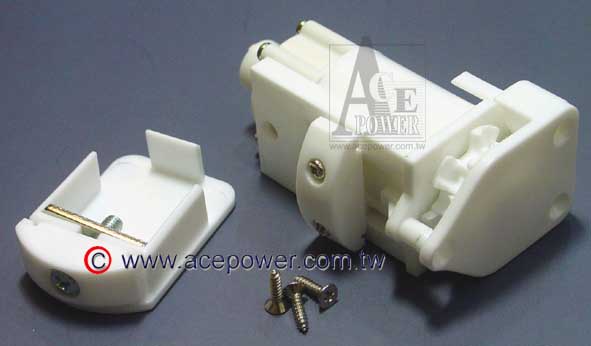

M27-B2

New Control Unit : + IDLE End, (1:1), short & quiet type

M27-B2(1:4)

New Control Unit : + IDLE End, (1:4),Heavy-duty and quiet type

M30-A2-4 (1:1)

Control Unit : + IDLE End (For Square Rod Type, side to side 5m/m) , Gear is 1:1, for open width 14.5mm alum. Track (M30-A1)

M30-A2-4 (1:4)

Control Unit : + IDLE End (For Square Rod Type, side to side 5m/m) , Gear is 1:4, for open width 14.5mm alum. Track (M30-A1)

M30-A2-6 (1:1)

Control Unit : + IDLE End (For Hexagon Rod Type, side to side 6m/m) , Gear is 1:1, for open width 14.5mm alum. Track (M30-A1)

M30-A2-6 (1:4)

Control Unit : + IDLE End (For Hexagon Rod Type, side to side 6m/m) , Gear is 1:4, for open width 14.5mm alum. Track (M30-A1)

M30-E4P

Inst. Spring Bracket : Painted, for M30-E1-PB, with I or 2 piece spring

M30-E4Z

Inst. Spring Bracket : Plated , for M30-E1-PB, with I or 2 piece spring

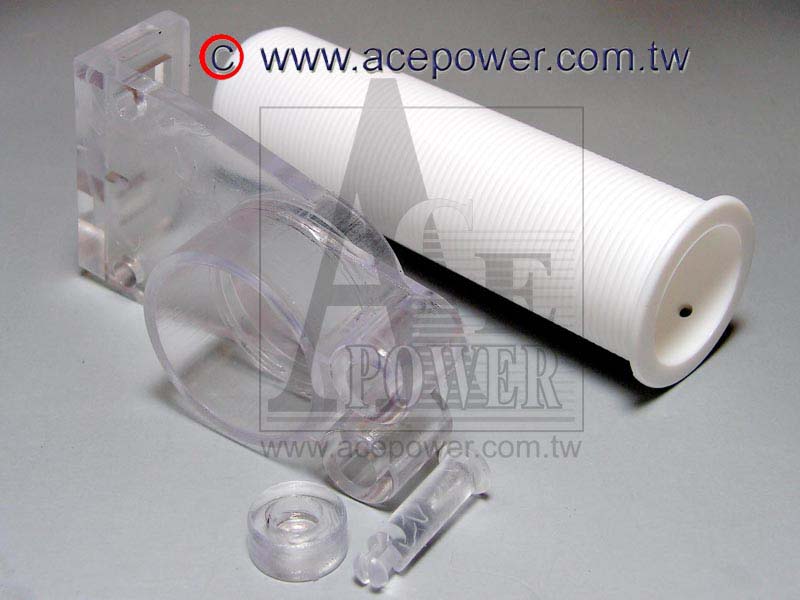

M33-3T-4

Roll Cord Shaft : For Hexagon Rod Type, Use Dia.1.0mm Cord, Max. Length : 4.36 M, color: Transparent

M33-3T-6

Roll Cord Shaft : For Hexagon Rod Type, Use Dia.1.0mm Cord, Max. Length : 4.36 M, color: Transparent

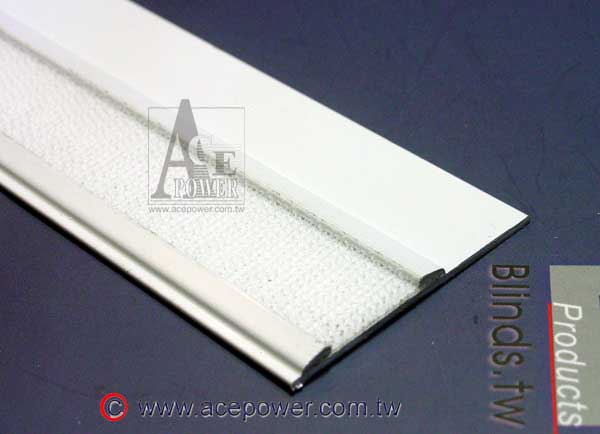

M50-18B-P

Alum. Velcro-Tape-Slat 49.2mm width , PAINTED, White , Could Insert to 50mm Alum. Head rail (M50-1) , can use 18mm width Velcro Hook

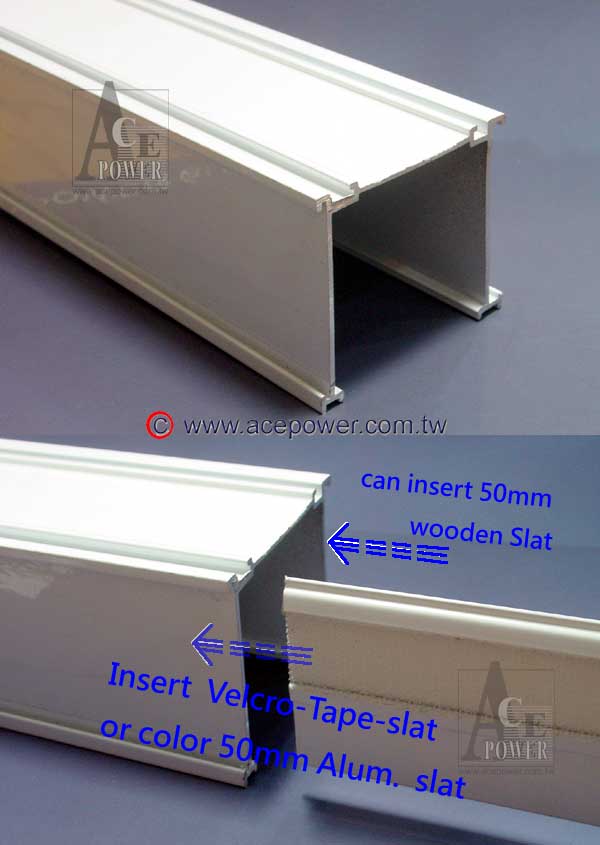

M50-1P

Alum. Head rail 50mm x 50mm, PAINTED, White , Could Insert 50mm Velcro-Tape-Slat (M50-18B) , or 50mm Venetian Alum. Slatt, The other side Could Insert 50mm Wooden Slat.

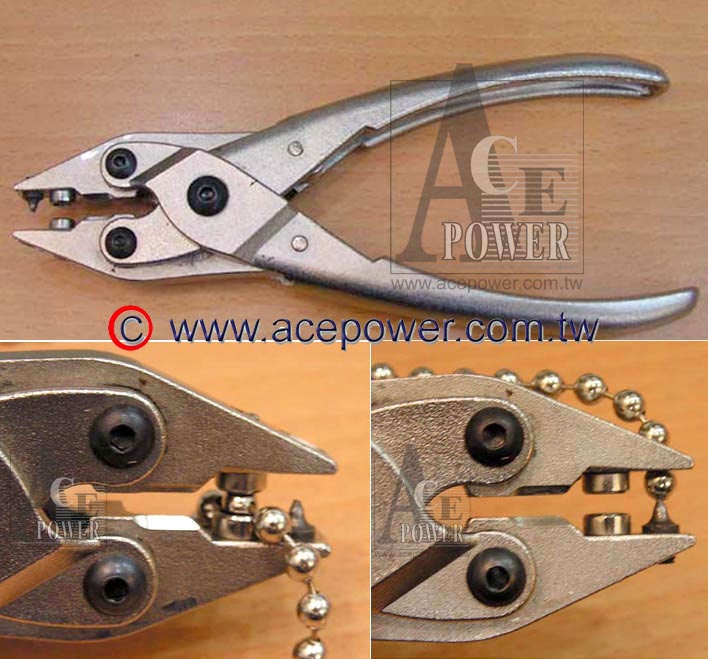

MCL-Tool

The tweezers for the dia.4.5mm metal chain to make loop (no connecter )

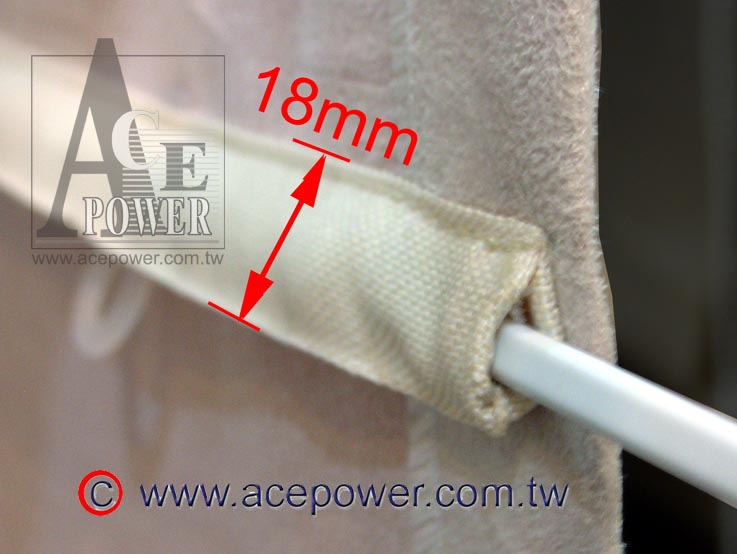

MHT-18-10003

White Hollow Tape, for Position Rod and Fabric, White or Color , height 18mm, 1roll=200meters,Min. order Qty=1CTN , per color 1 roll

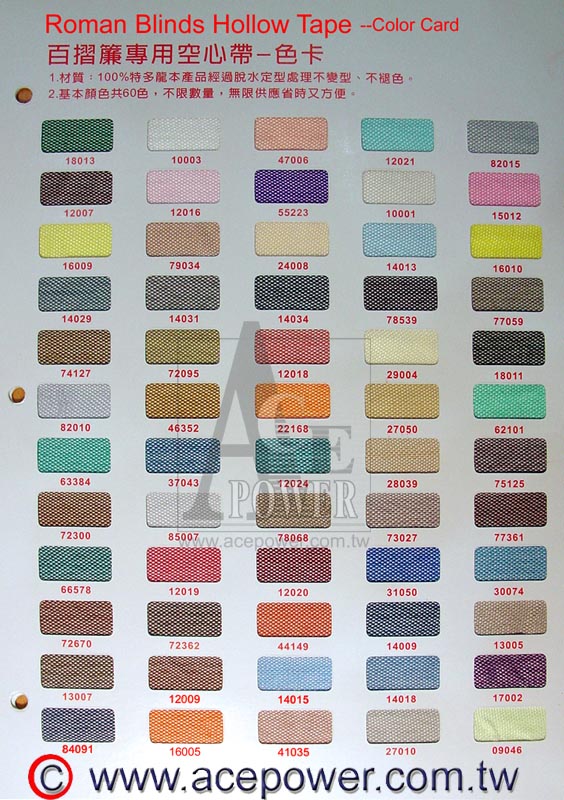

MHT-18-color no.

Colorful Hollow Tape, for Position Rod and Fabric, White or Color , height 18mm, 1roll=200meters , Min. order Qty=1CTN , per color 1 roll

MRT-1010-5T

Transparent Position Tape, for Position Rod and Cord, Transparent , height 17mm,10mmX10mm

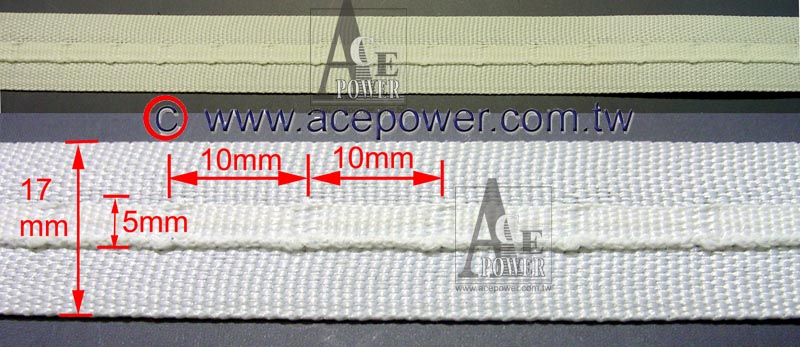

MRT-1010-5W

White Position Tape, for Position Rod and Cord, White or Color , height 17mm, 10mmX10mm

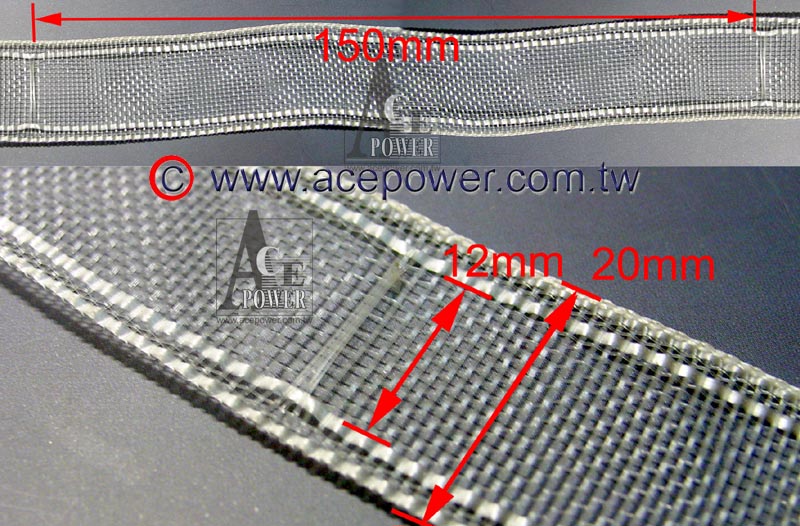

MRT-150-12T

Transparent Position Tape, for Position Rod and Cord, height 20mm, per 150mm one Position Cord-Ring

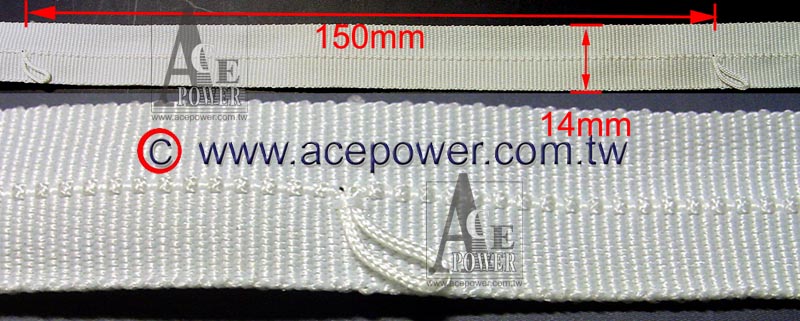

MRT-150-CR

White or Transparent Position Tape, for Position Rod and Cord, height 14mm, per 150mm one Position Cord-Ring

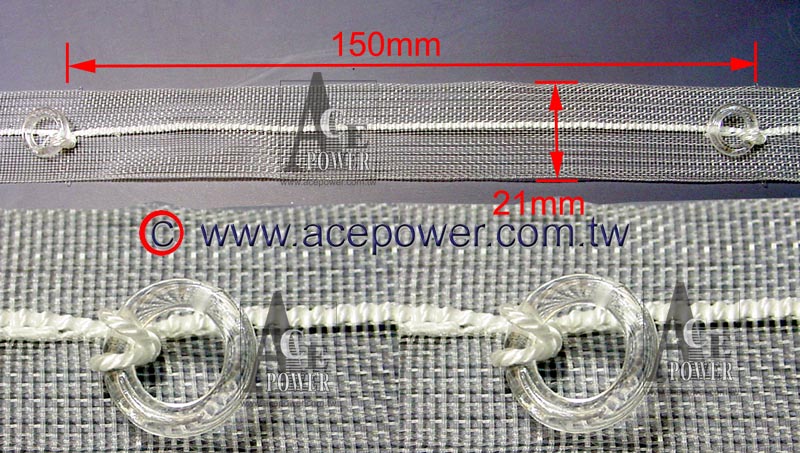

MRT-150-OT

Transparent Position Tape With Transparent plastic Ring, for Position Rod and Cord, height 20~21mm, per 150mm one Position plastic Ring

MRT-1515-5T

Transparent Position Tape, for Position Rod and Cord, Transparent , height 17mm, 15mmX15mm

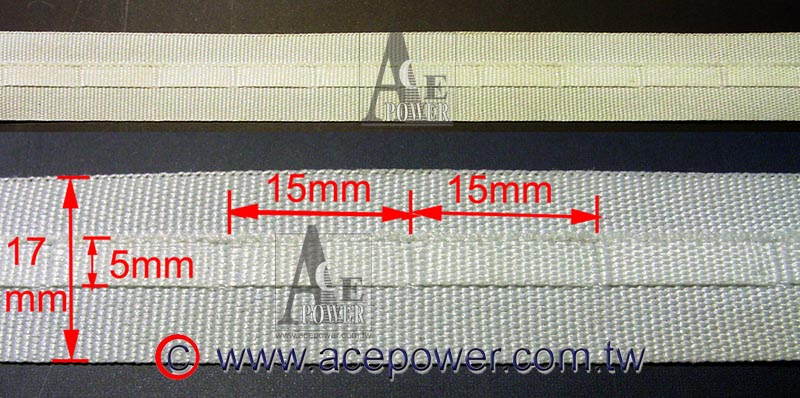

MRT-1515-5W

White Position Tape, for Position Rod and Cord, White or Color , height 17mm, 15mmX15mm

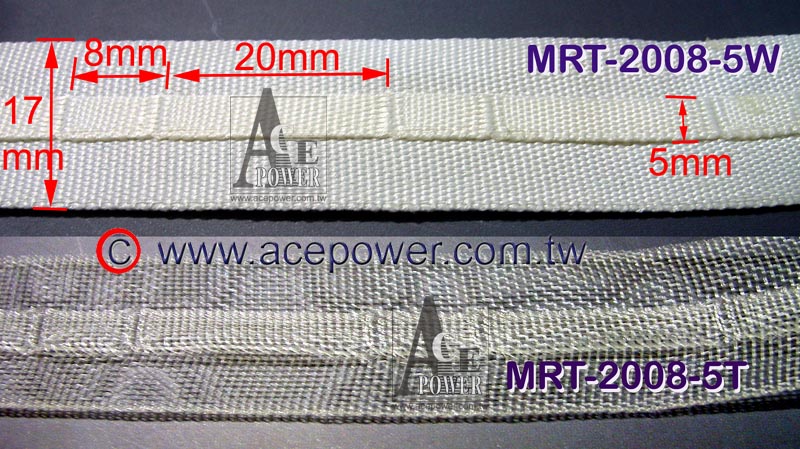

MRT-2008-5T

Transparent Position Tape, for Position Rod and Cord, Transparent , height 17mm, 20mmX8mm

MRT-2008-5W

White Position Tape, for Position Rod and Cord, White or Color , height 17mm, 20mmX8mm

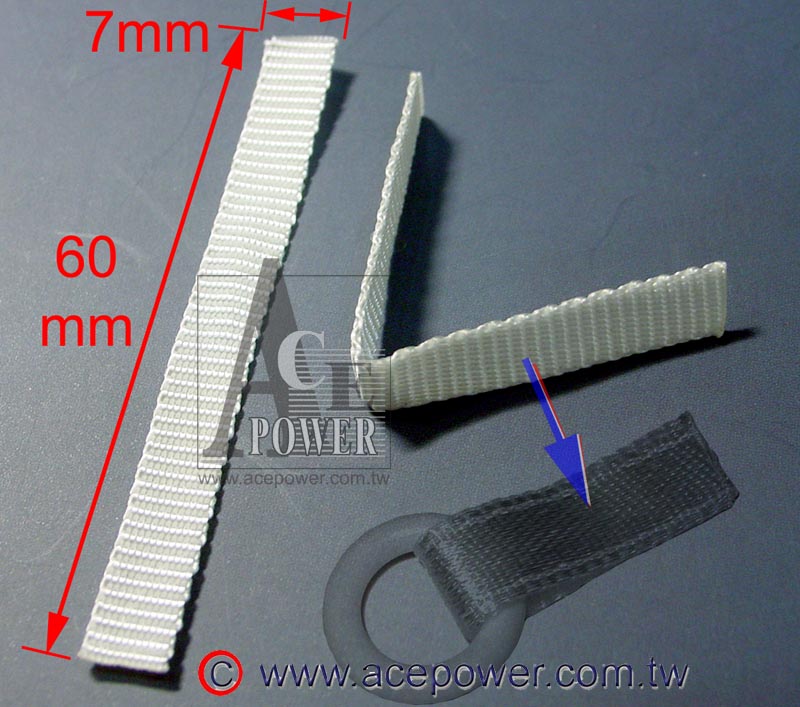

MT-6007

Tape, for Position Ring and Fabric, White , size 7mmX60mm, without Position Ring

MT-6007-O

Tape, for Position Ring and Fabric, White , size 7mmX60mm, with plastic Position White Ring

MT-6007T

Tape, for Position Ring and Fabric, Transparent , size 7mmX60mm, without Position

MT-6007T-O

Tape, for Position Ring and Fabric, Transparent , size 7mmX60mm, with plastic Position White Ring

MT-6007T-OT

Tape, for Position Ring and Fabric, Transparent , size 7mmX60mm, with plastic Position Transparent Ring

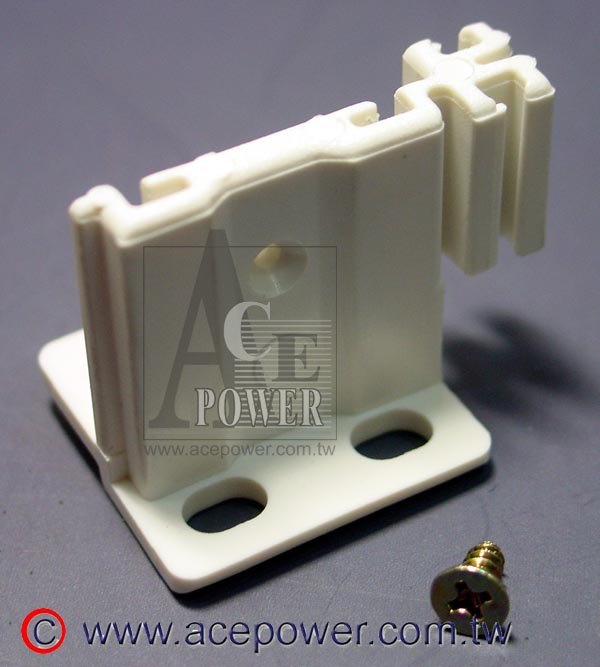

P15-06YL

Stopper ,and End Cap with Runner ,Left side, Y Type Rail, With 1 screw , for P15-11Y Run-Rail

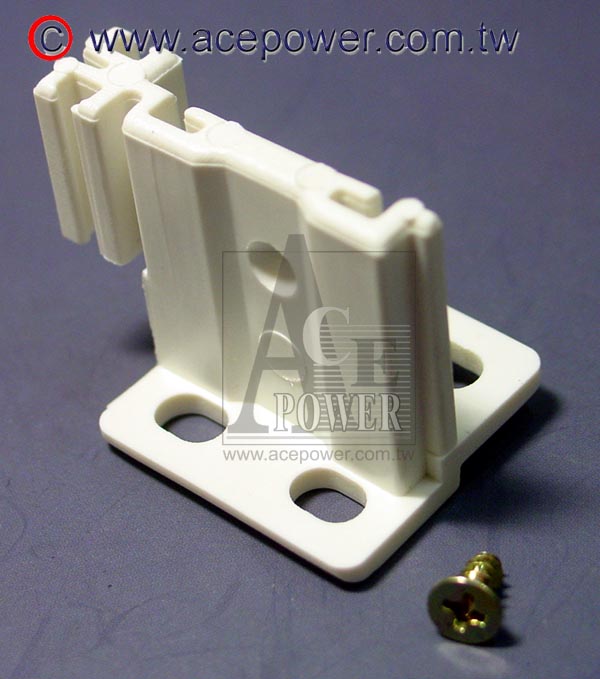

P15-06YR

Stopper ,and End Cap with Runner ,Right side, Y Type Rail, With 1 screw , for P15-11Y Run-Rail

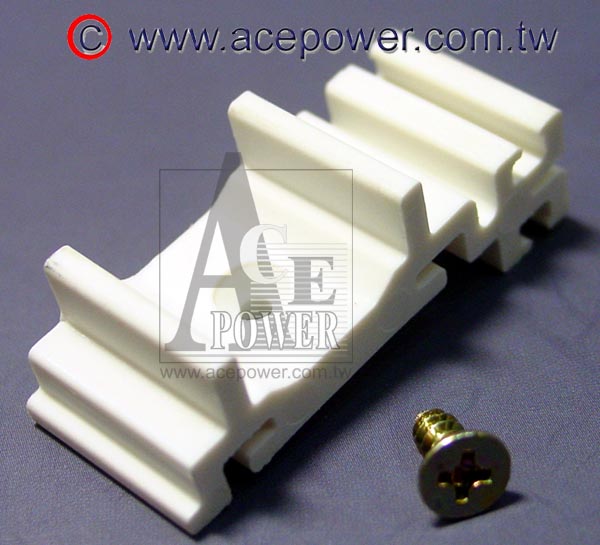

P15-09Y

Runner, for Y Type Rail , With 1 screw , for P15-11Y Run-Rail

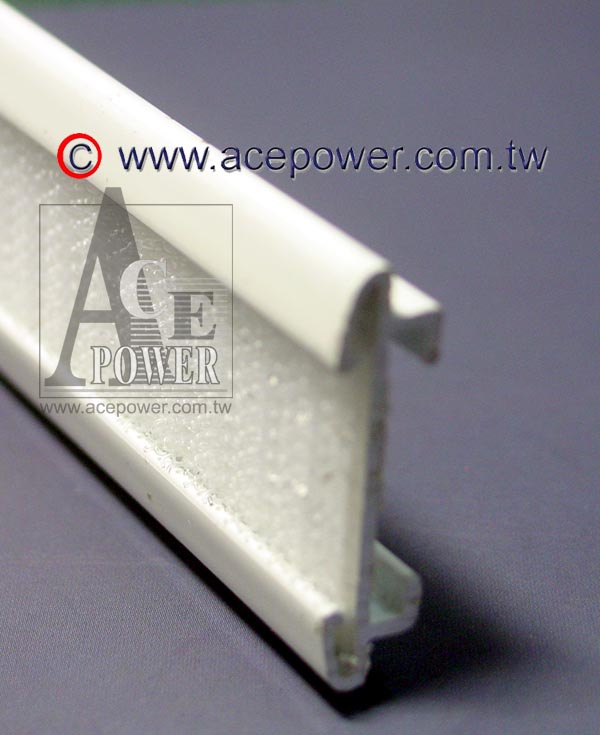

P15-11Y

Y Type Rail , Master connecting rail, Aluminum-painted With velcro , use P15-09Y type runner and P15-06Y stopper

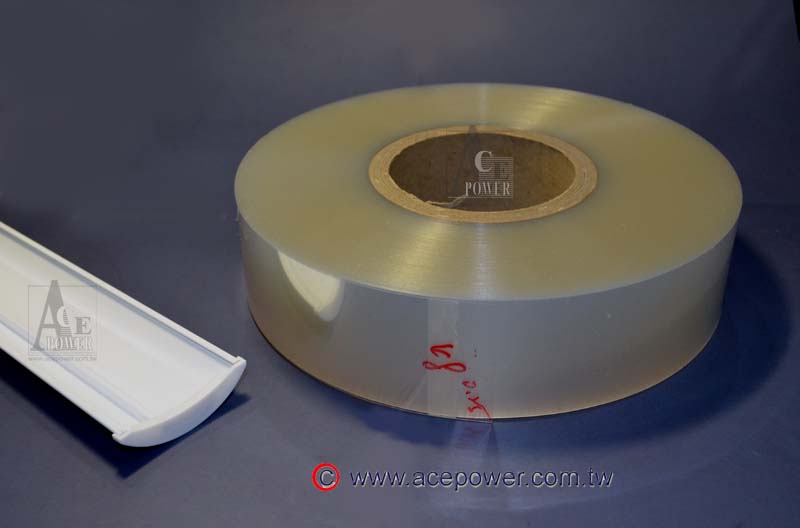

PET-0.25X48

PET Transparent slat , Thickness=0.25mm Width=48mm 100meters/Roll , for RVA-4C (Silhouette Roller Blinds system Alum. Curve Bottom Rail, to insert with Fabric together)

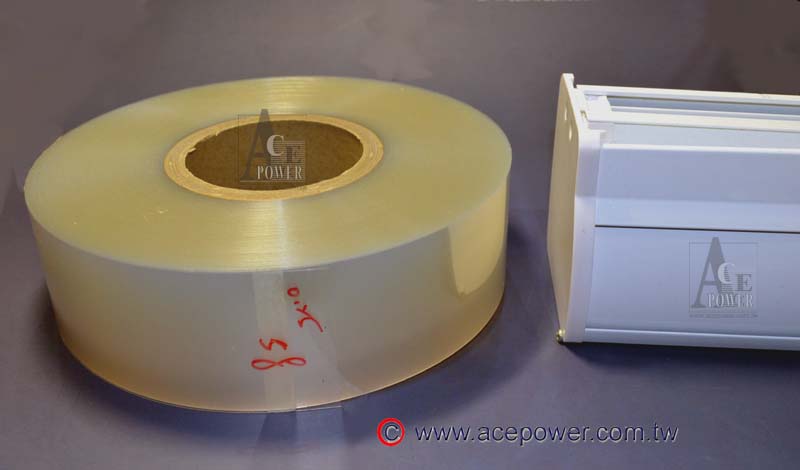

PET-0.25X58

PET Transparent slat , Thickness=0.25mm Width=58mm 100meters/Roll , for RVB-7SP-FR ( Alum. Fabric-insert Valance roller blinds Head Rail , to insert with Fabric slat together)

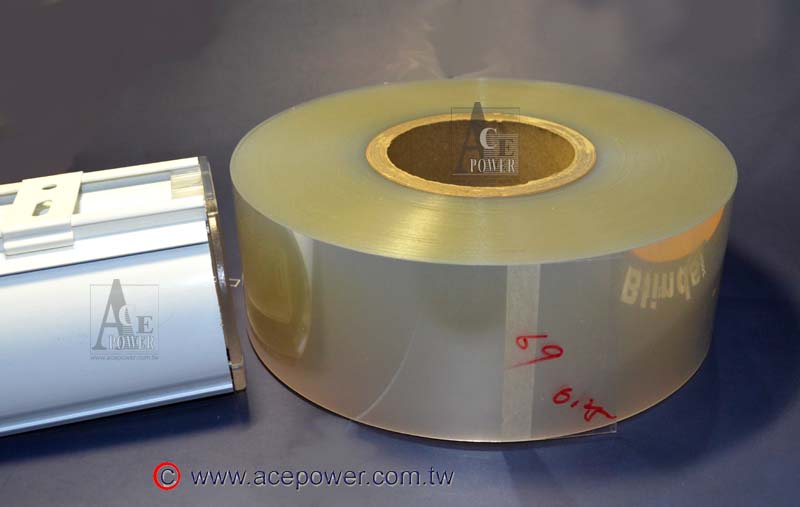

PET-0.25X69

PET Transparent slat , Thickness=0.25mm Width=69mm 100meters/Roll , for RVA-7CP-FR ( Alum. Fabric-insert Valance roller blinds Head Rail , to insert with Fabric slat together)

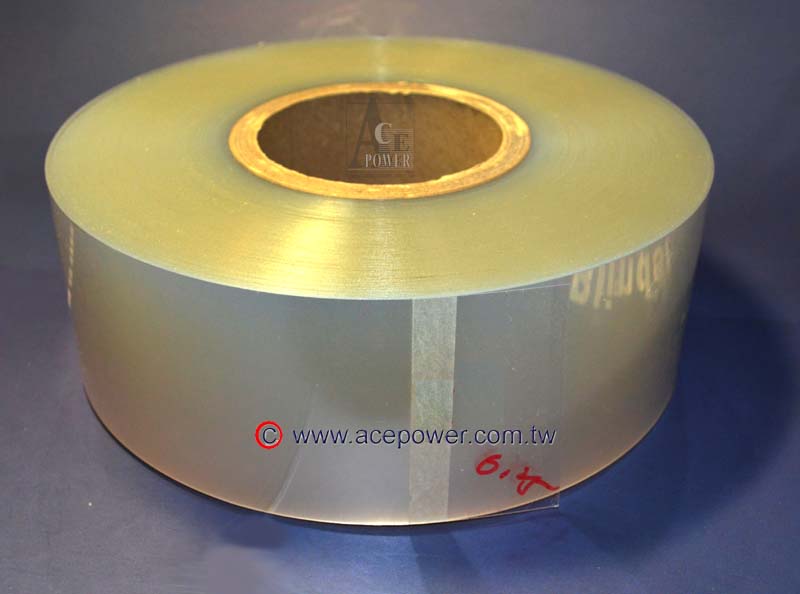

PET-0.25Xxx

PET Transparent slat , Thickness=0.25mm Width= available on customer's need, 100meters/Roll , for Combine/Silhouette roller blinds to insert with Fabric slat together

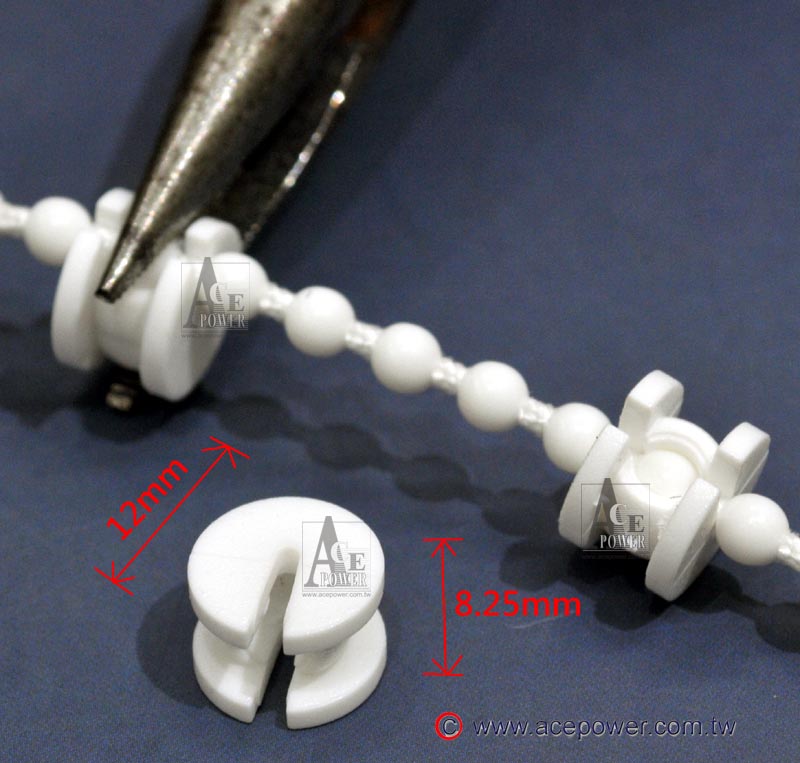

RB-12-PDW

PLASTIC STOP BALL-RING , Double V OPEN TYPE For Dia. 4.5mm Ball chain

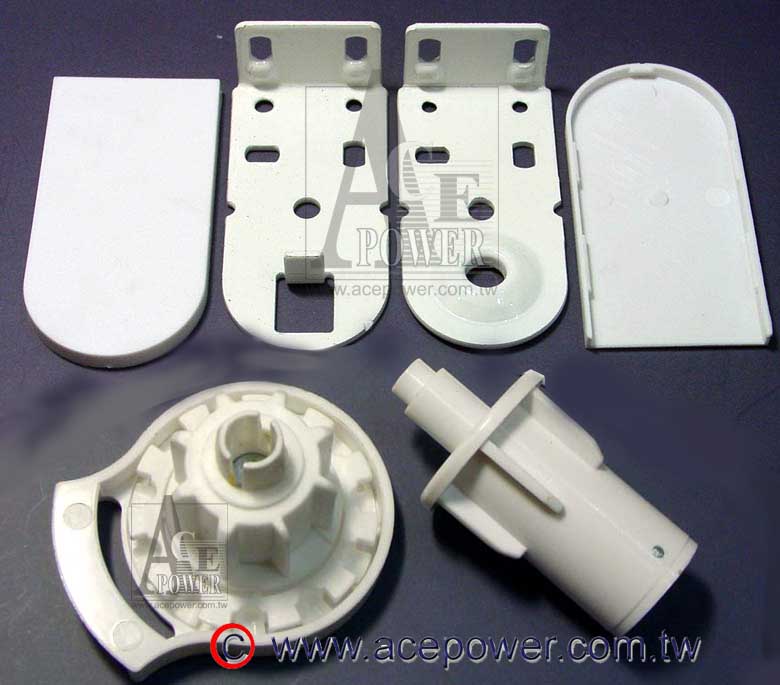

RB30B-2SLP

Control Mechanism and Spring End cap, with Installation bracket, Painted,Long type, Dia. 30mm ; Outside : Dia. 32mm

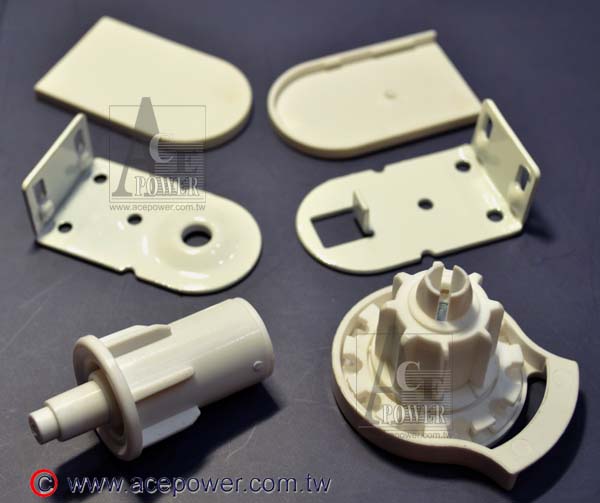

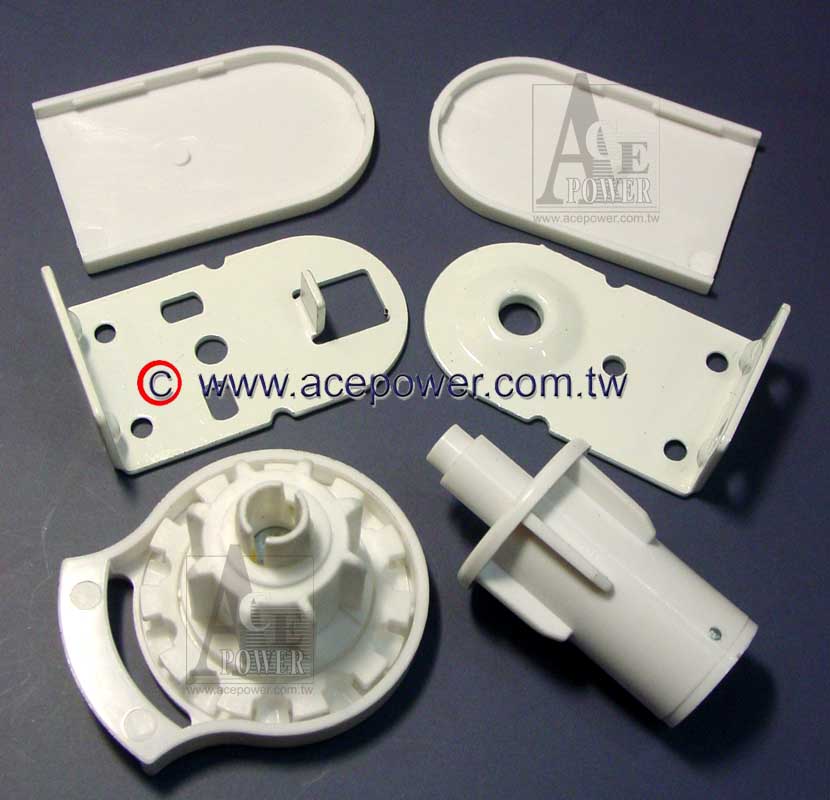

RB30B-2SSP

Control Mechanism and Spring End cap, with Installation bracket, Painted,Short type, Dia. 30mm ; Outside : Dia. 32mm

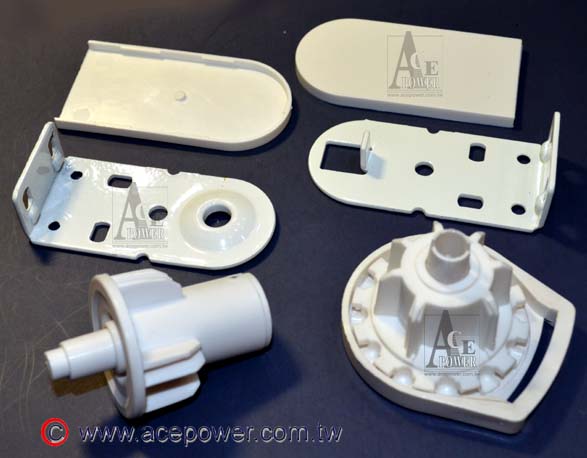

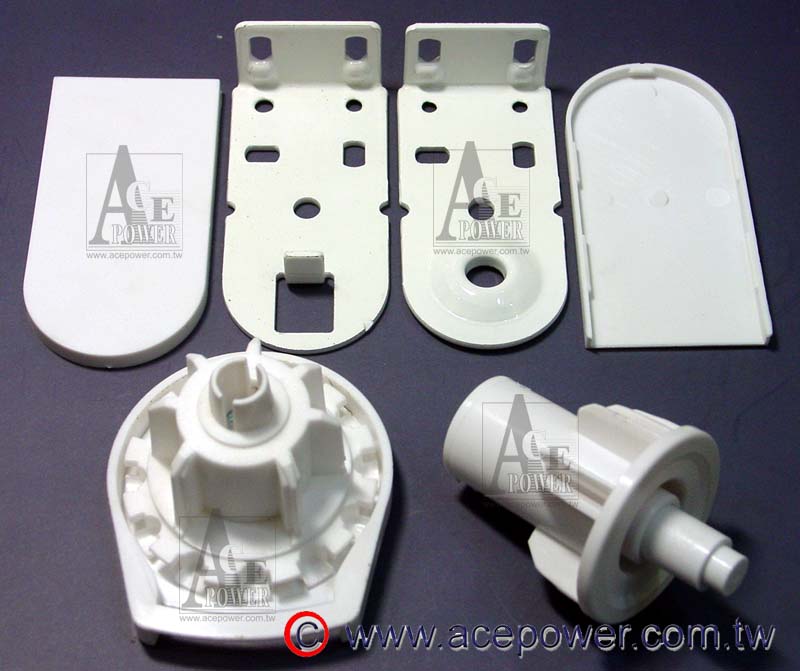

RB37B-2SLP

Control Mechanism and Spring End cap, with Installation bracket, Painted,Long type, Inside : Dia. 37mm ; Outside : Dia. 39mm

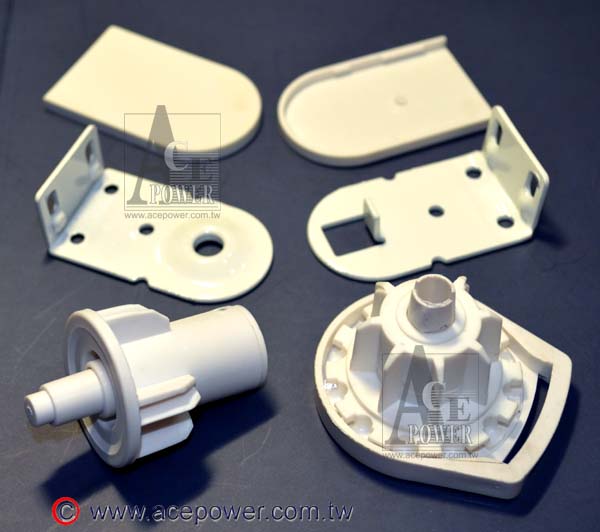

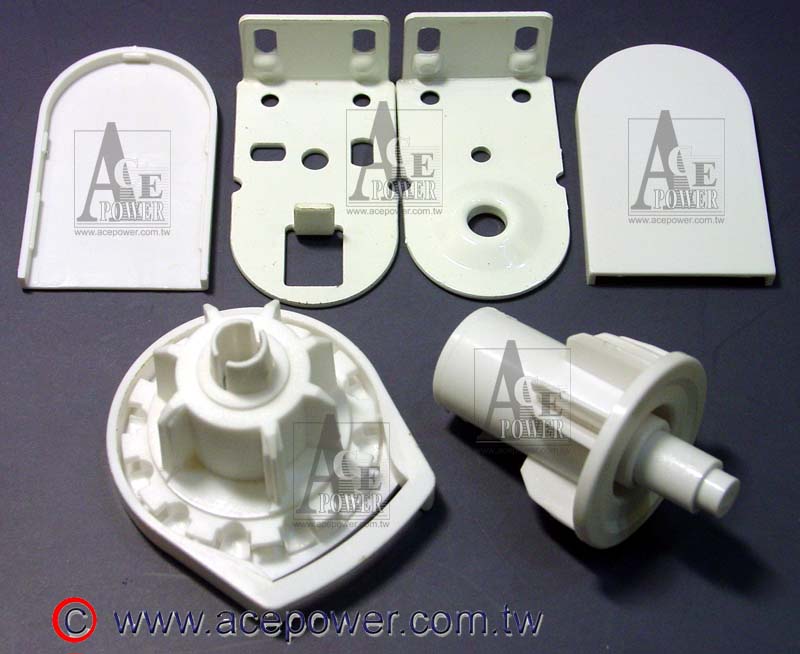

RB37B-2SSP

Control Mechanism and Spring End cap, with Installation bracket, Painted,Short type, Inside : Dia. 37mm ; Outside : Dia. 39mm

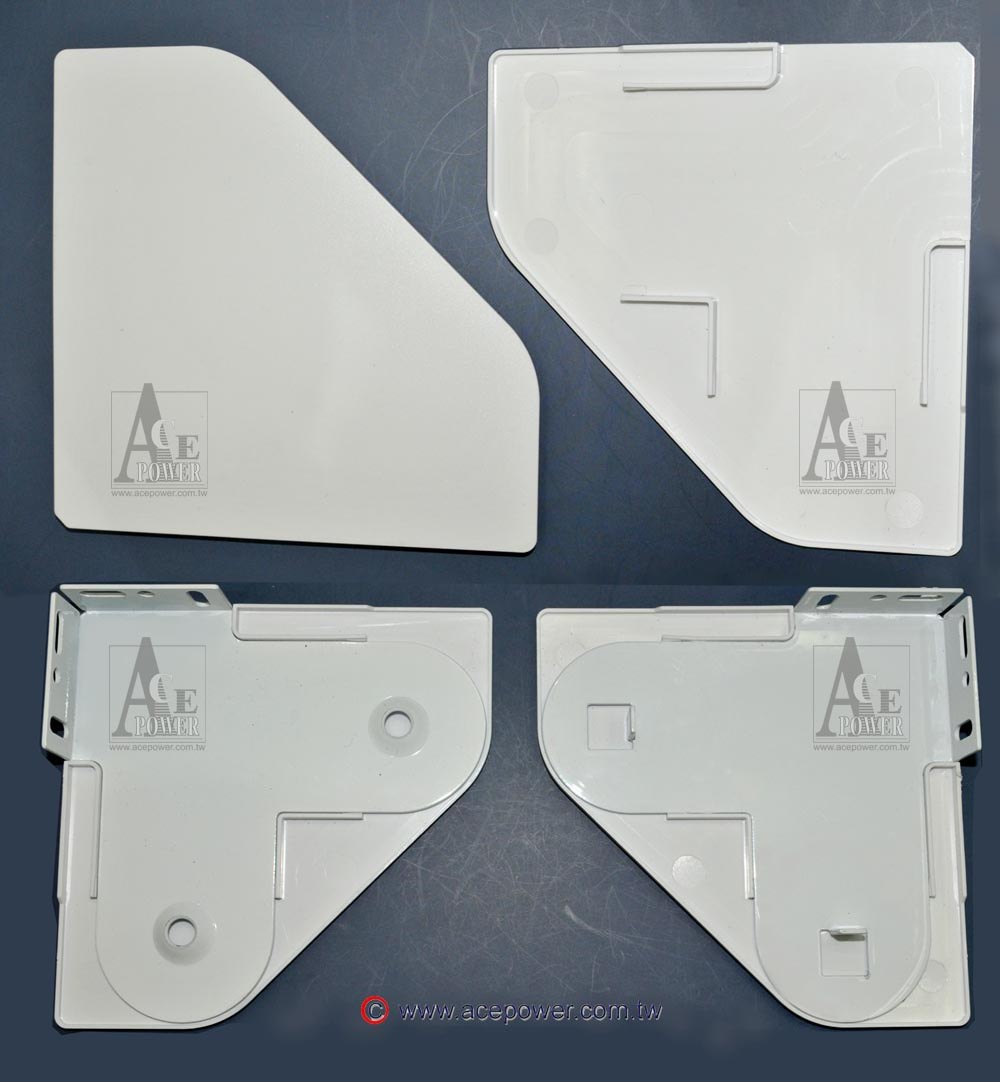

RB37B-8DV-PC

Plastic End Cap , for Roller blind mechanism double bracket Vertical metal type, 2pcs/set, For RBxxB-2S type

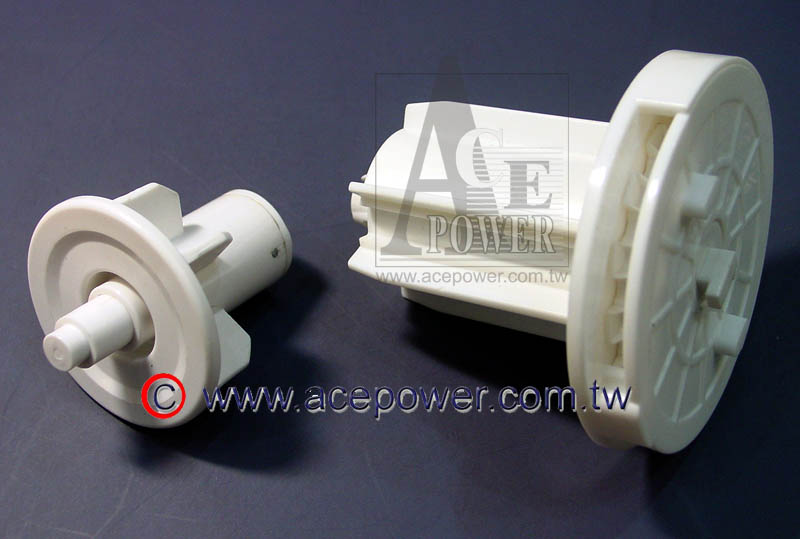

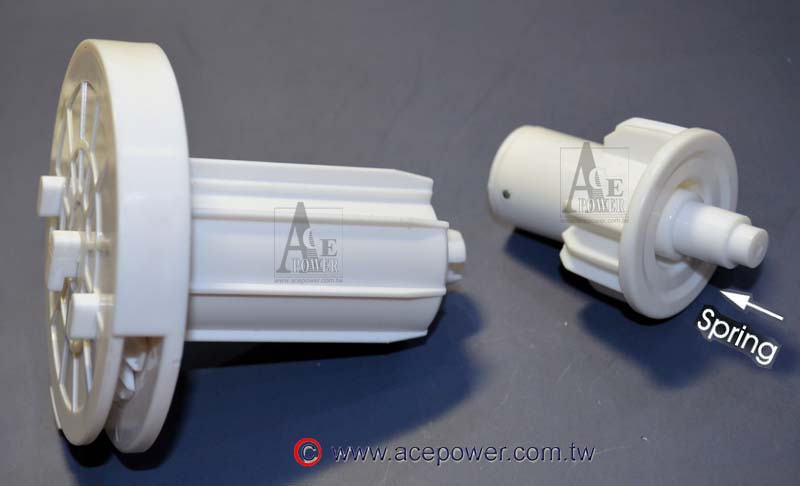

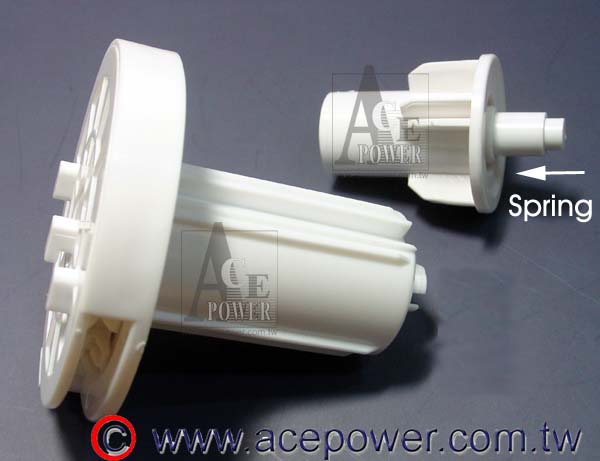

RB38M-45MY2

Roller blind, 45mm Control mechanism for 38mm tube , for 45mm installation Matal Bracket, Adjustable 1~4 inside springs of mechanism type

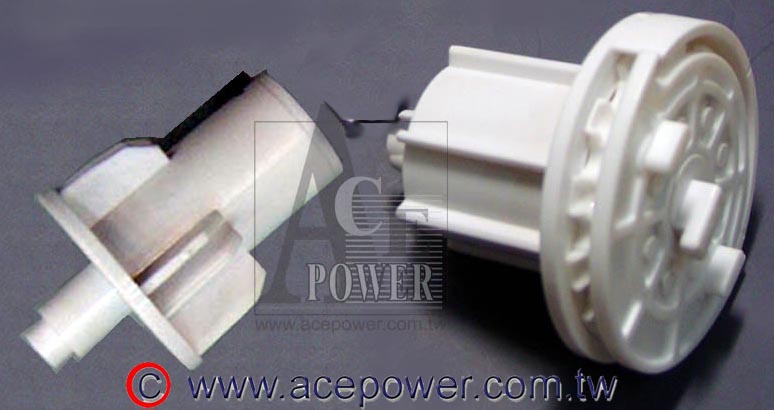

RB38M-B2

Roll blind, 38MM Control mechanism Without Installation Metal bracket, 2 springs inside Short control mechanism , Spring End Cap type,

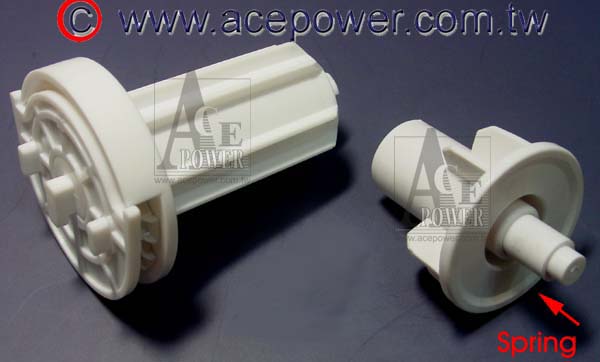

RB45M-38MY2

Roller blind, 38mm Control mechanism for 45mm tube , for 38mm nstallation Matal Bracket, Adjustable 1~3 inside springs of mechanism type

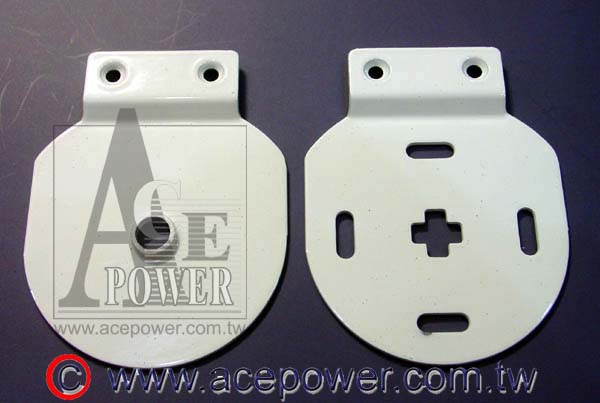

RB45M-Y3D

Installation Matal Bracket, for 45MM Roll blind, can use RBD-7P, RCB-7P

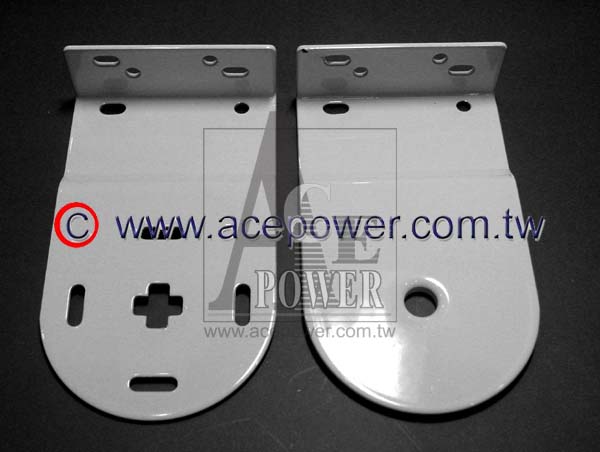

RB45M-Y3XL

Installation Matal Bracket, for 45MM Roll blind, Long type

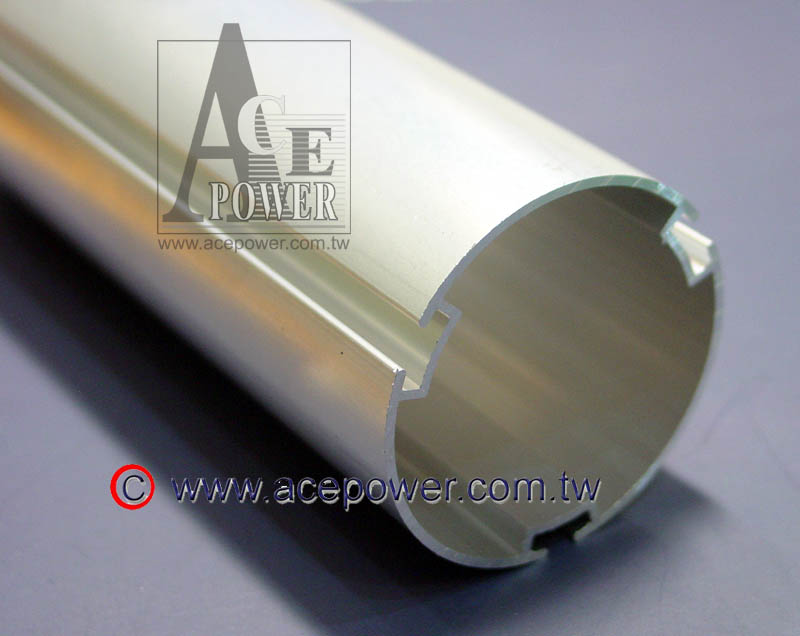

RB50M-1

50mm Aluminium Tube, 3 Slots 5.8m/pc

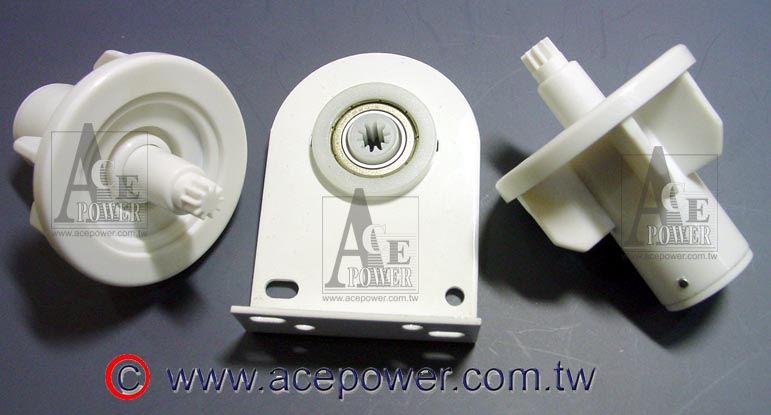

RB50M-9TB

Tube joint, Joining two 50mm tube roller blinds for one control unit operation. Center bracket with smooth ball bearing, and 2pcs spring end cap.

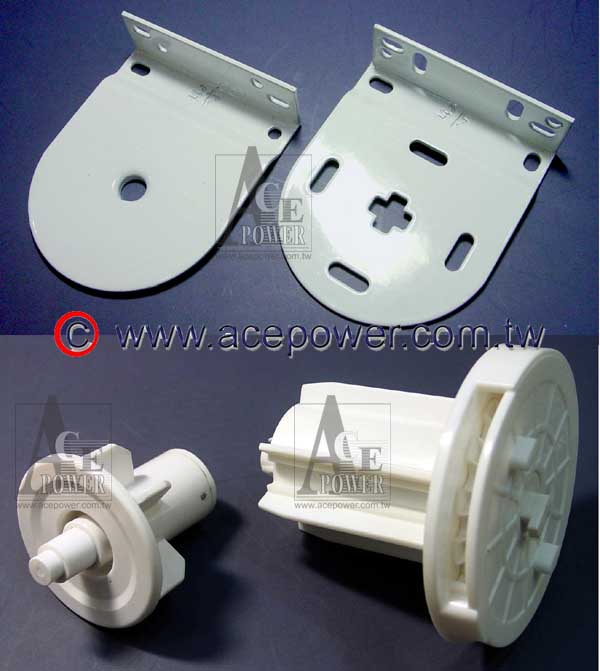

RB50M-Y

Roller blind, 50mm Control mechanism for 50mm tube , with 45mm installation Matal Bracket, Adjustable 1~4 inside springs of mechanism type

RB50M-Y2

Roller blind, 50mm Control mechanism for 50mm tube , for 45mm installation Matal Bracket, Adjustable 1~4 inside springs of mechanism type

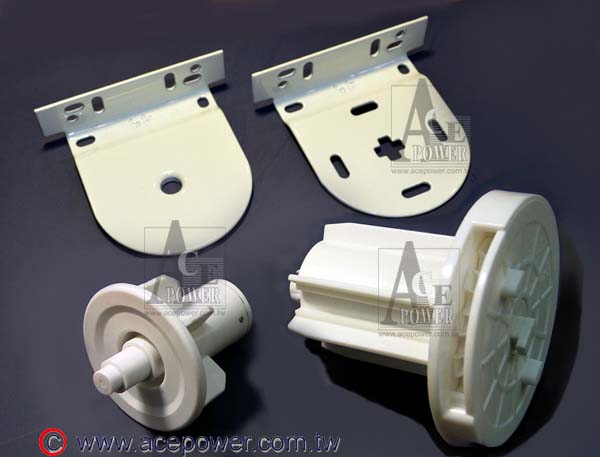

RB50M-YW

Roller blind, 50mm Control mechanism for 50mm tube , with 45mm installation Matal Bracket with ear type, Adjustable 1~4 inside springs of mechanism type

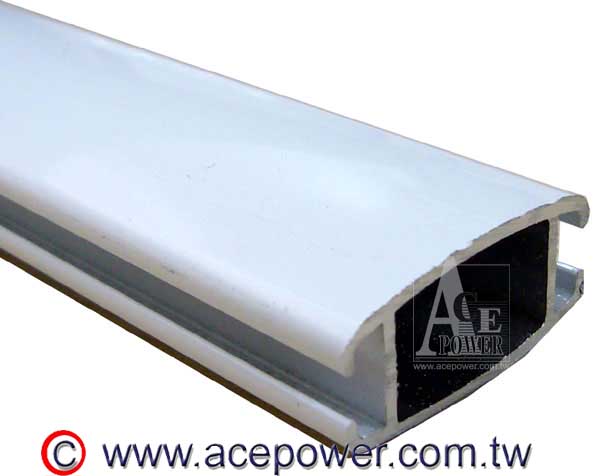

RB-F4

Alum. Bottom rail , Close and Flat type, Two way open, Painted, Plated

RB-F4W

Alum. Bottom rail , Close and Flat type, Two way open, Painted, Plated

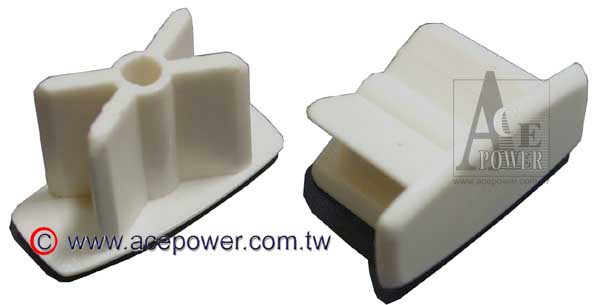

RB-F5

End cap, For RB-F4 Bottom rail

RB-F5

End cap, For RB-F4 Bottom rail

RB-F5W

End cap, For RB-F4W Bottom rail

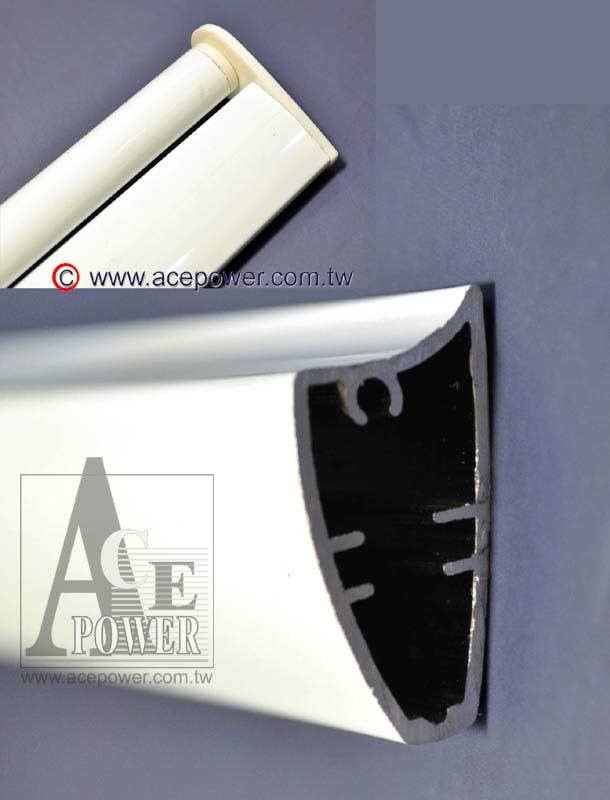

RCA-4P

Alum. Bottom Rail , Height=30mm, PAINTED, 5.8m/pc, for Combine Roller Blinds

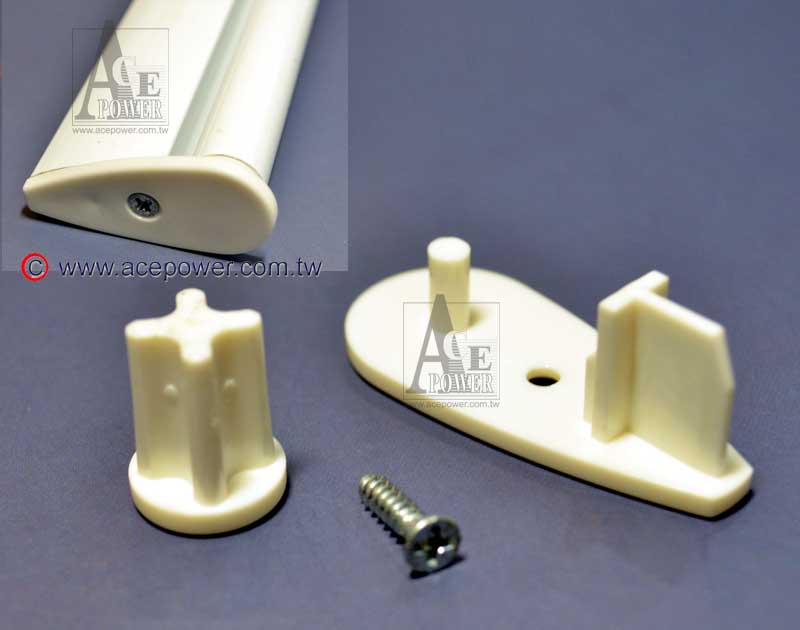

RCA-5

End Cap ,Plastic , for RCA-4 & RCA-6 Alum. Bottom Rail and tube, for Combine roller blinds, 2pcs/set

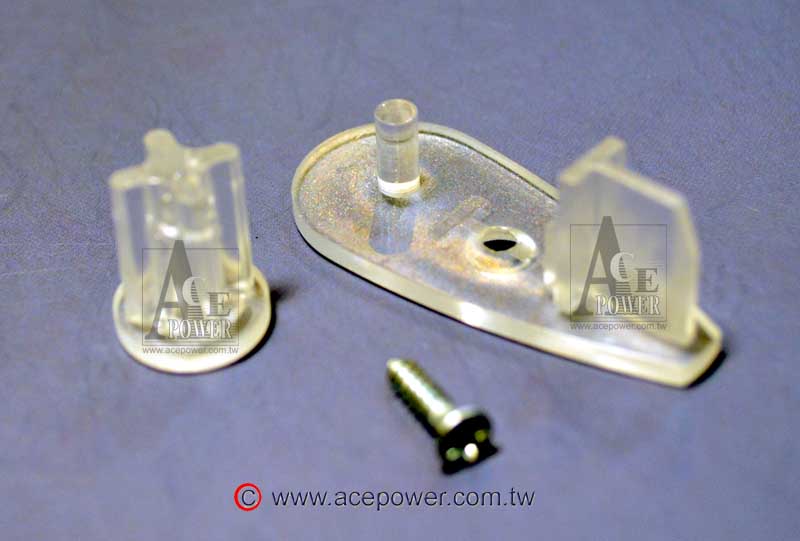

RCA-5T

End Cap ,PC Transparen, for RCA-4 & RCA-6 Alum. Bottom Rail and tube, for Combine roller blinds, 2pcs/set

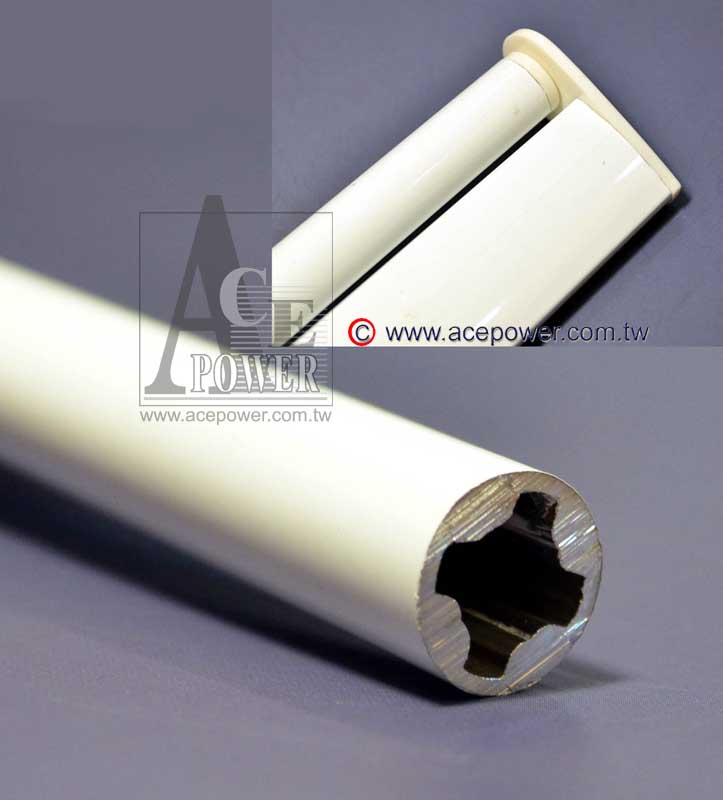

RCA-6P

Alum. Bottom Rail, PAINTED, 5.8m/pc, for Combine Roller Blinds

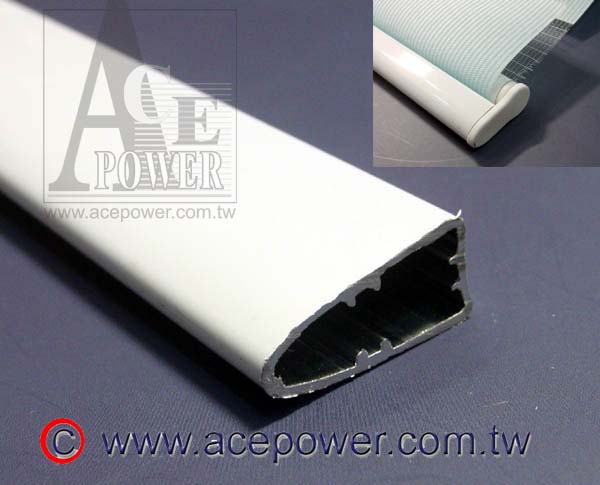

RCB-4P

Alum. Bottom Rail , PAINTED, 5.8m/pc, for Combine Roller Blinds

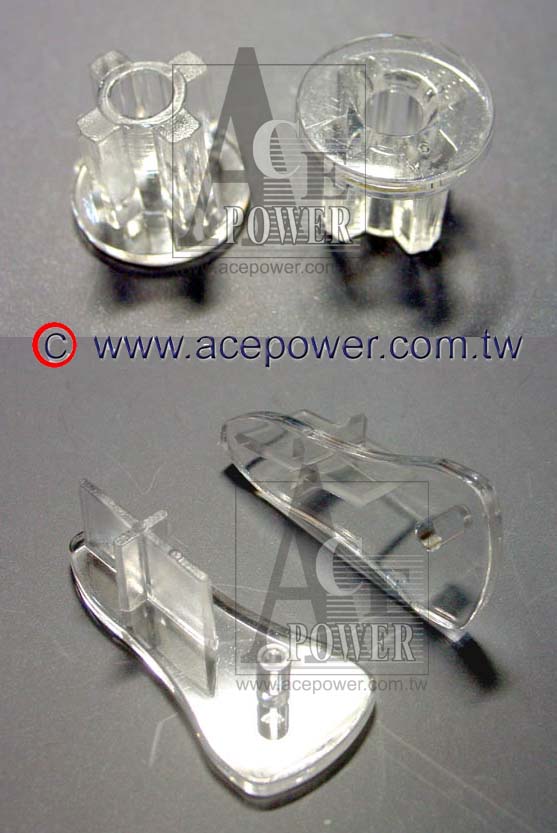

RCB-5T

End Cap ,PC Transparen, for Alum. Bottom Rail and tube, for Combine roller blinds, 2pcs/set

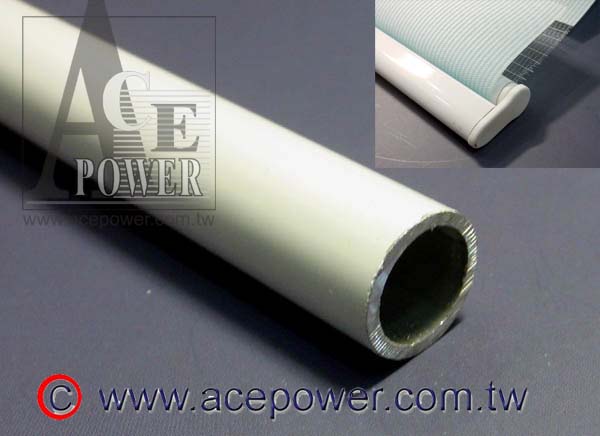

RCB-6P

Alum. Bottom Rail, PAINTED, 5.8m/pc, for Combine Roller Blinds

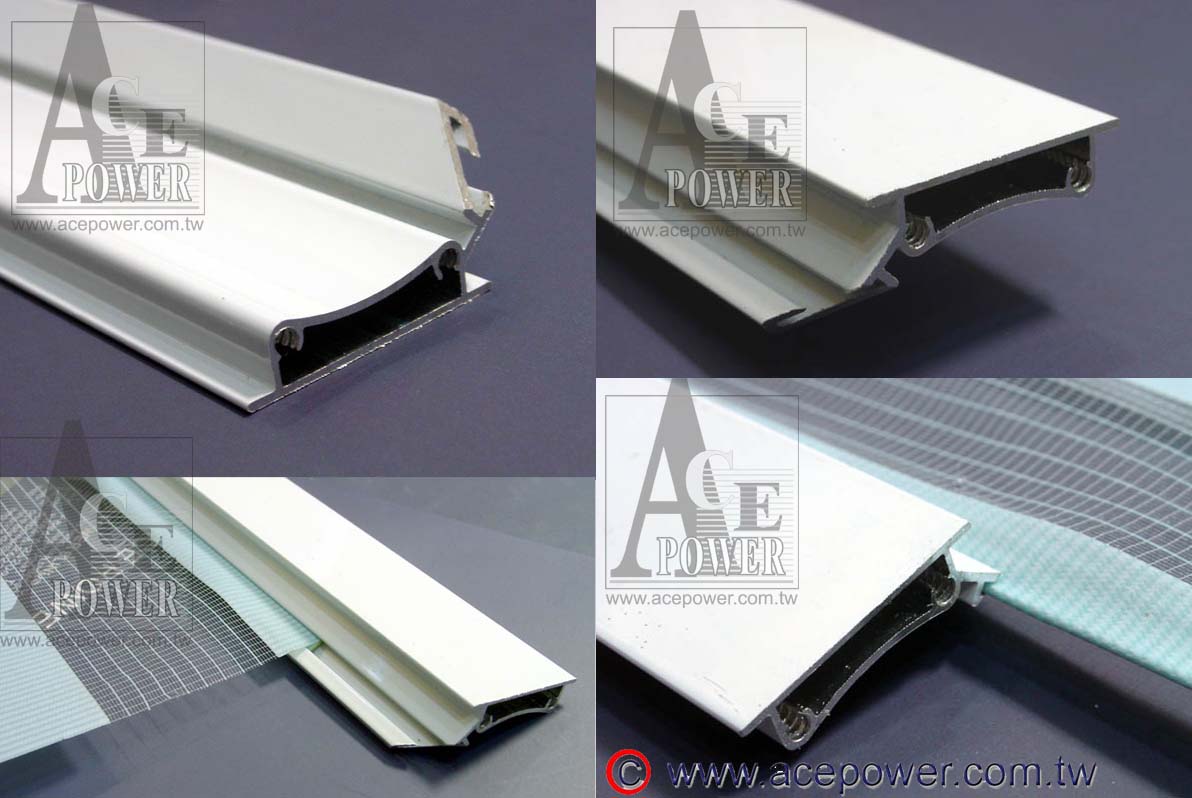

RCB-7P

Alum. Head Rail, PAINTED, 5.8m/pc, for Combine roller blinds , use 40mm Ceiling Clip bracket

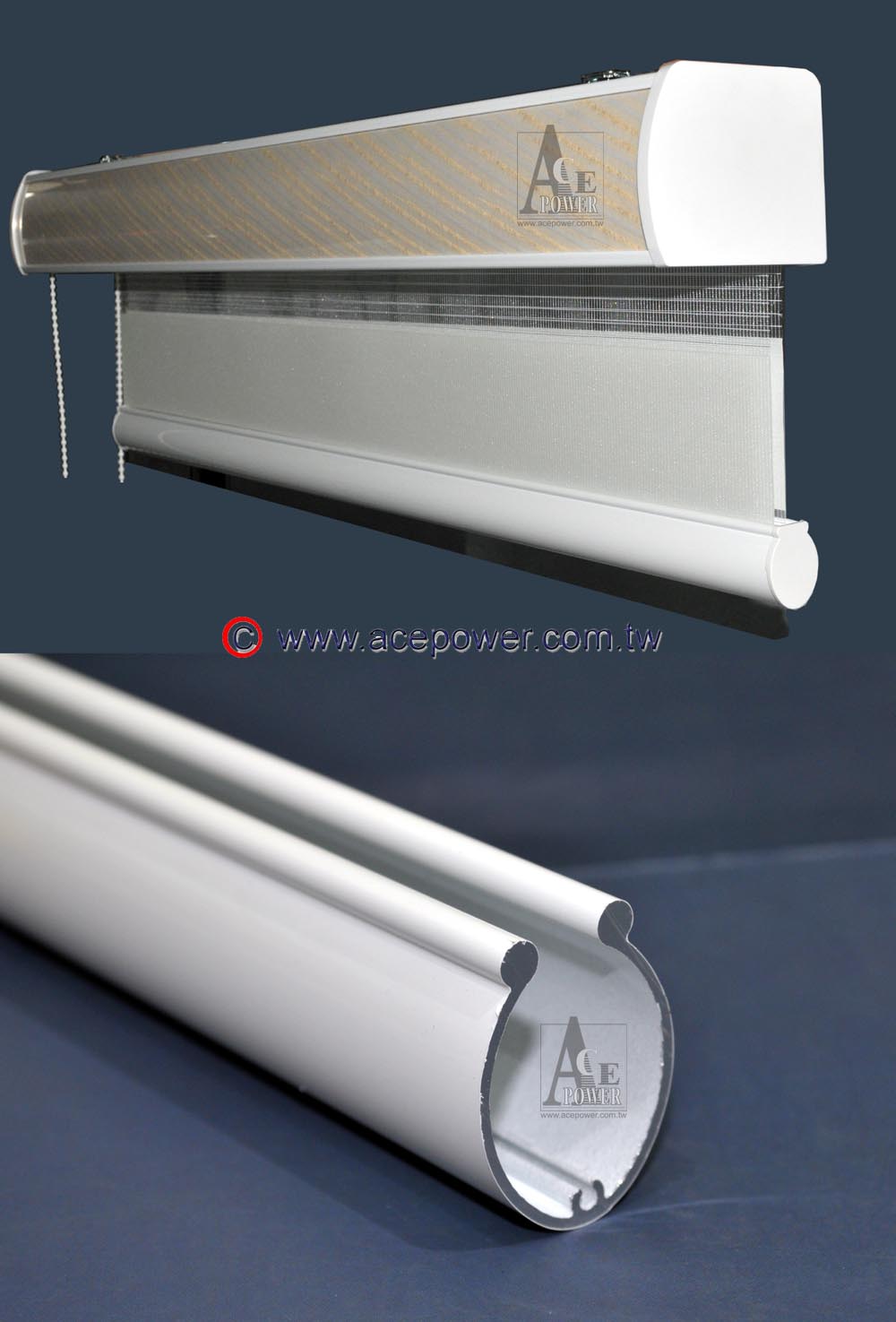

RCC-4P

Alum. Ellipse Bottom Rail , Painted, 5.8m/pc, for Combine Roller Blinds

RCC-5

End Cap , ABS , for Alum. Ellipse Bottom Rail RCC-4P and tube RCA-6P, for Combine roller blinds, 2pcs/set

RVA30B-3L

Installation Plastic Bracket, Left- Control, 2 pcs/set , with 6 screws , for RB30B-2S /RB37B-2S, for RVA-7 Head Rail , PC White

RVA30B-3R

Installation Plastic Bracket, Right-Control , 2 pcs/set , with 6 screws , for RB30B-2S /RB37B-2S, for RVA-7 Head Rail , PC White

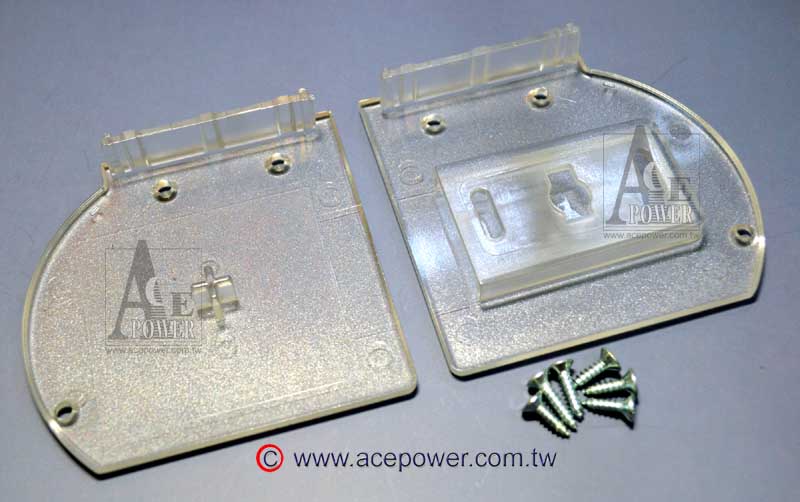

RVA30B-3TL

Installation Plastic Bracket, Left- Control, 2 pcs/set , with 6 screws , for RB30B-2S /RB37B-2S, for RVA-7 Head Rail , T=PC Transparent

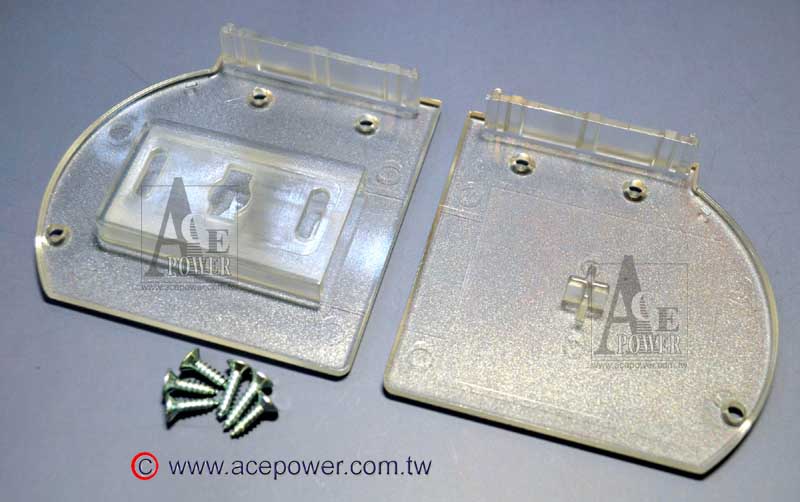

RVA30B-3TR

Installation Plastic Bracket, Right-Control , 2 pcs/set , with 6 screws , for RB30B-2S /RB37B-2S, for RVA-7 Head Rail , T=PC Transparent

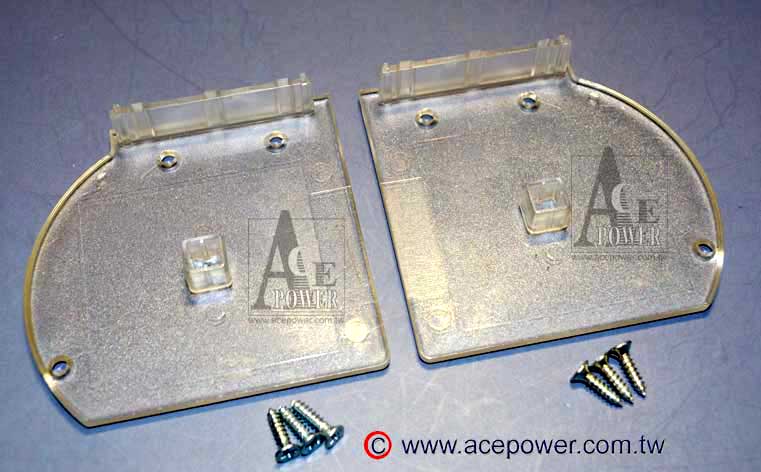

RVA32A-3

Installation Plastic Bracket, Right or Left Control, 2 pcs/set , with 6 screws , for RB32A-2 / RB38A-2 / RB42A-2, for RVA-7 Head Rail, PC White

RVA32A-3T

Installation Plastic Bracket, Right or Left Control 2 pcs/set , with 6 screws , for RB32A-2 / RB38A-2 / RB42A-2, for RVA-7 Head Rail , T=PC Transparent

RVA32BT-3

Installation Plastic Bracket, for Right or Left Control , 2 pcs/set , with 6 screws , for RVB32BT-2 /RVB38BT-2, for RVA-7 Head Rail, PC White

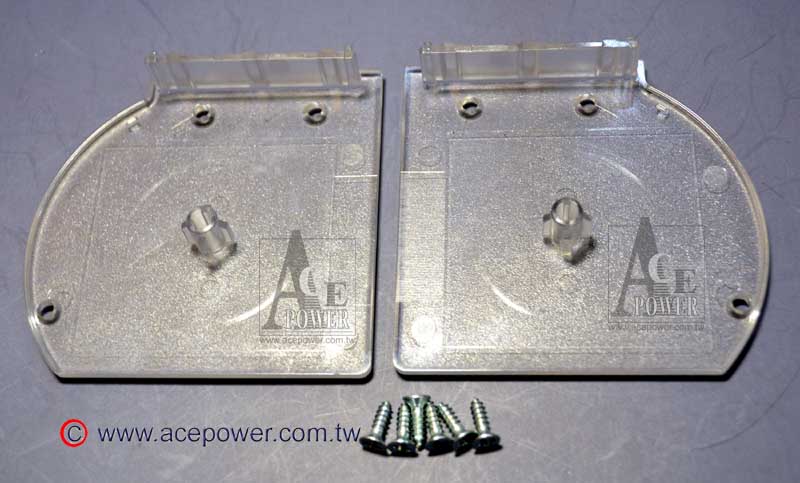

RVA32BT-3T

Installation Plastic Bracket, for Right or Left Control, 2 pcs/set , with 6 screws , for RVB32BT-2 /RVB38BT-2, for RVA-7 Head Rail ,PC Transparent

RVA32M-3

Installation Plastic Bracket and End-Cap , W 75mmX H 72mm ,Right and Left side, 2 pcs/set, with 6 screws , for RB32M Roll blind, for RVA-7P Head Rail for Combine/Silhouette roller blinds

RVA32M-3T

Installation PC Transparen Bracket and End-Cap , W 75mmX H 72mm ,Right and Left side, 2 pcs/set, with 6 screws , for RB32M Roll blind, for RVA-7P Head Rail for Combine/Silhouette roller blinds

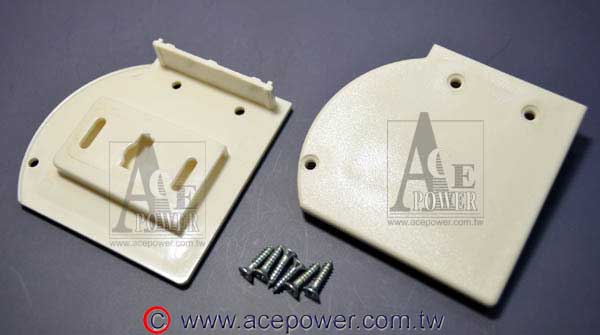

RVA38M-3

Installation Plastic Bracket and End-Cap , W 75mmX H 72mm , Right and Left side, 2 pcs/set, with 6 screws , for RB38M Roll blind, for RVA-7P Head Rail for Combine/Silhouette roller blinds

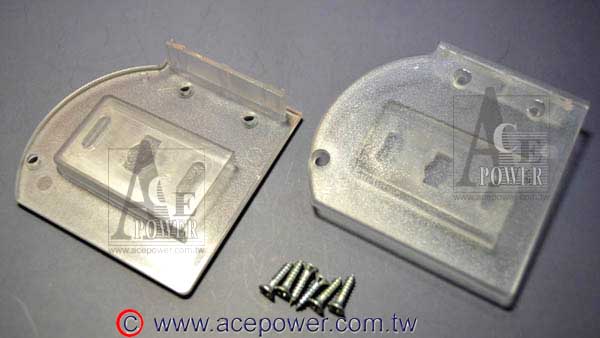

RVA38M-3T

Installation PC Transparen Bracket and End-Cap , W 75mmX H 72mm ,Right and Left side, 2 pcs/set, with 6 screws , for RB38M Roll blind, for RVA-7P Head Rail for Combine/Silhouette roller blinds

RVA38R-3

Installation Plastic Bracket, Right or Left Control , 2 pcs/set , with 6 screws , for RB38RS-2 / RB45R-2, for RVA-7 Head Rail, PC White

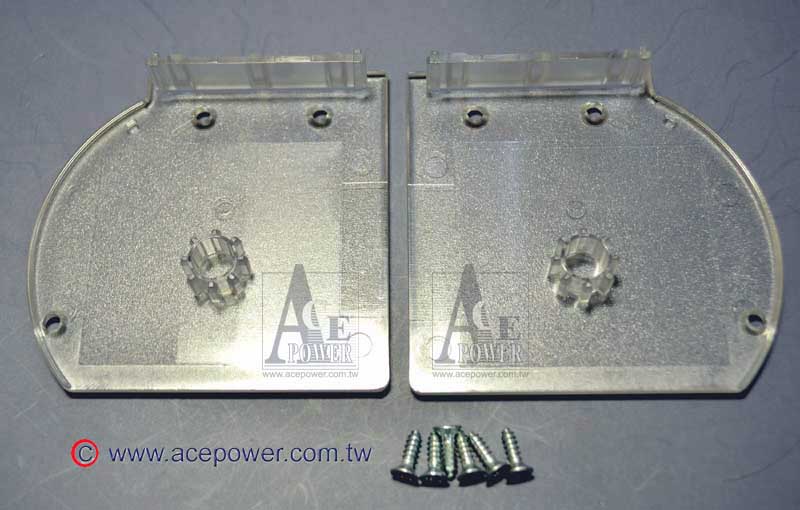

RVA38R-3T

Installation Plastic Bracket, Right or Left Control, 2 pcs/set , with 6 screws , for RB38RS-2 / RB45R-2, for RVA-7 Head Rail , T=PC Transparent

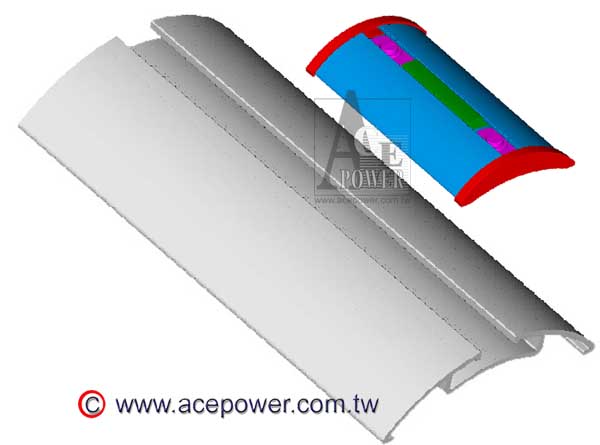

RVA-4CP

Alum. Curve Bottom Rail, Painted, 5.8m/pc, for Silhouette Roller Blinds, use 50mm Alum. Slat to stick on fabric

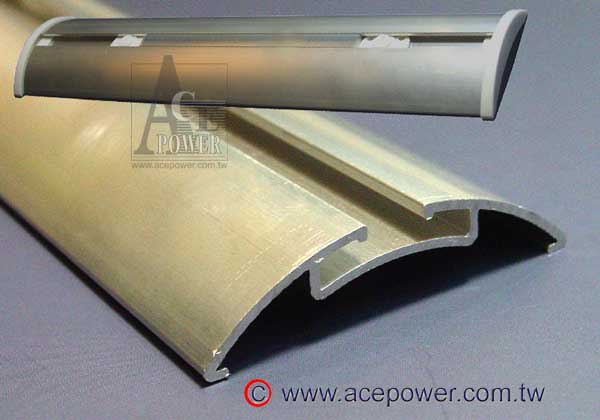

RVA-4CZ

Alum. Curve Bottom Rail, Plated, 5.8m/pc, for Silhouette Roller Blinds, use 50mm Alum. Slat to stick on fabric

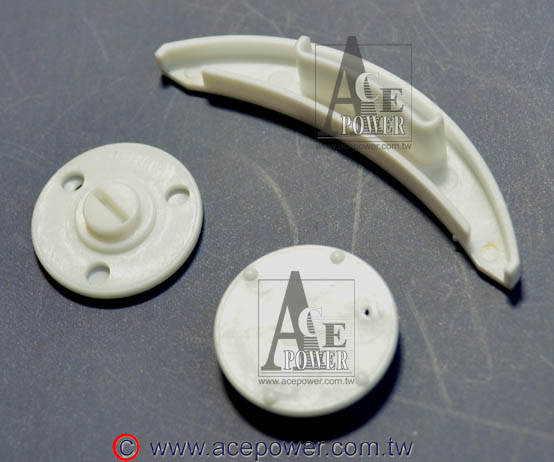

RVA-5C

New End Cap, with 2 stopers , for Silhouette roller blinds RVA-4C +6W Alum. Bottom Rail

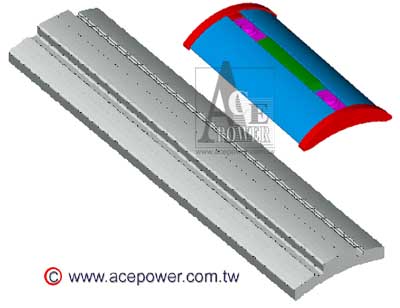

RVA-6WP

Alum. Bottom weight slat, Painted , 5.8m/pc, insert RVA-4C to adjust and balance weight , for Silhouette Roller Blinds

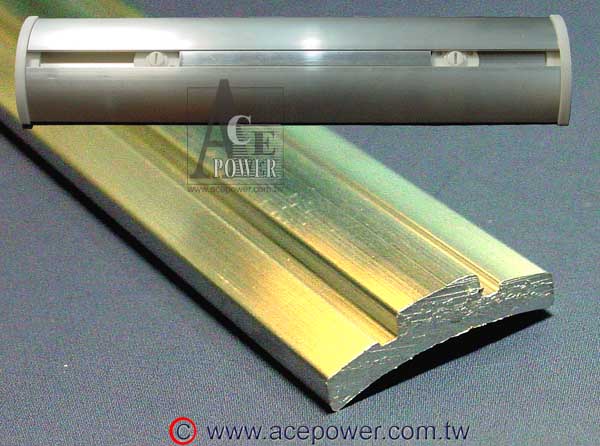

RVA-6WZ

Alum. Bottom weight slat, Plated , 5.8m/pc, insert RVA-4C to adjust and balance weight , for Silhouette Roller Blinds

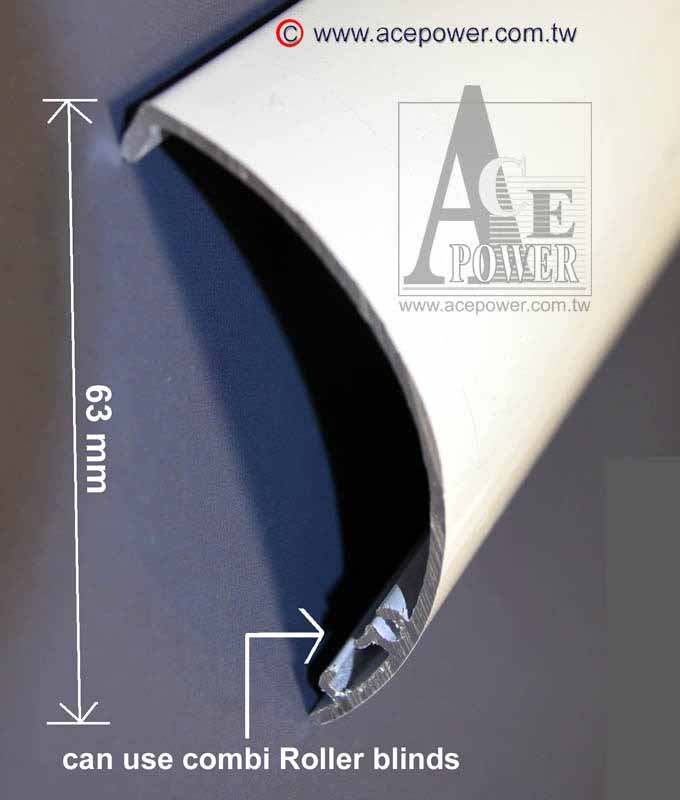

RVA-7CP

Alum. Valance for Head Rail, Length=63mm , PAINTED, 5.8m/pc, C Curve type , for RVA-7P Head Rail Combine/Silhouette roller blinds

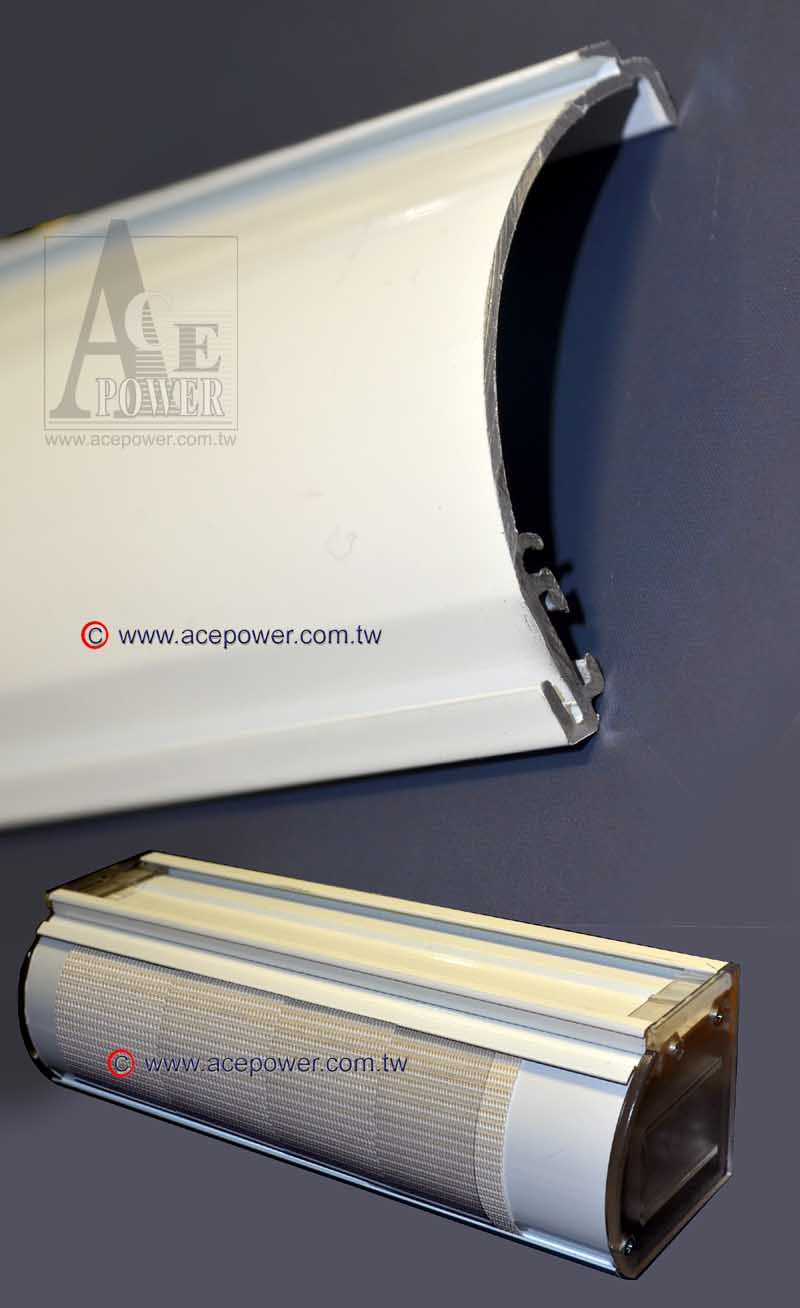

RVA-7CP-FR

Alum. Fabric-insert Valance for Head Rail, Length=63mm , PAINTED, 5.8m/pc, C Curve type , Could Insert Fabric slat, for RVA-7P Head Rail Combine/Silhouette roller blinds

RVA-7C-PVC

PVC Valance for Head Rail, Length=63mm , 3~4m/pc, C Curve type , for RVA-7P Head Rail Combine/Silhouette roller blinds

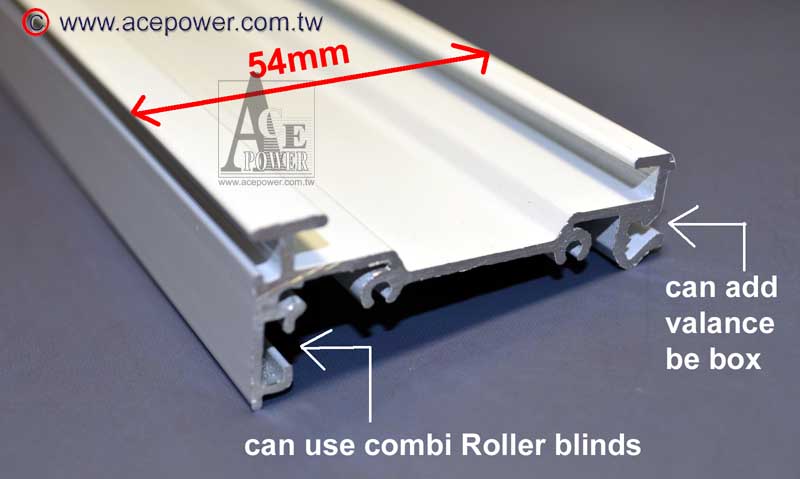

RVA-7P

Alum. Head Rail, Width=54mm, PAINTED, 5.8m/pc, can add Valance RVA-7CP for Combine/Silhouette roller blinds

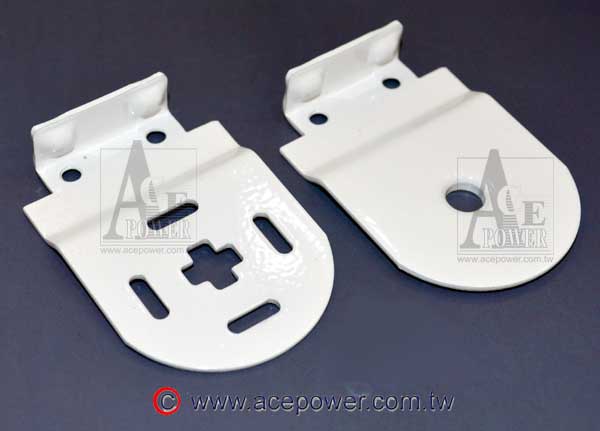

RVB32M-Y3

Installation Matal Bracket, for RB32M Roll blind, for RVB-7P Head Rail for Combine/Silhouette roller blinds, for RBB-7P

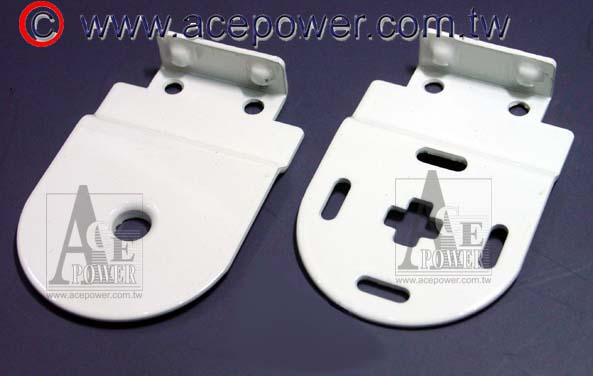

RVB38M-Y3

Installation Matal Bracket, for RB38M Roll blind, for RVB-7P Head Rail for Combine/Silhouette roller blinds, for RBB-7P

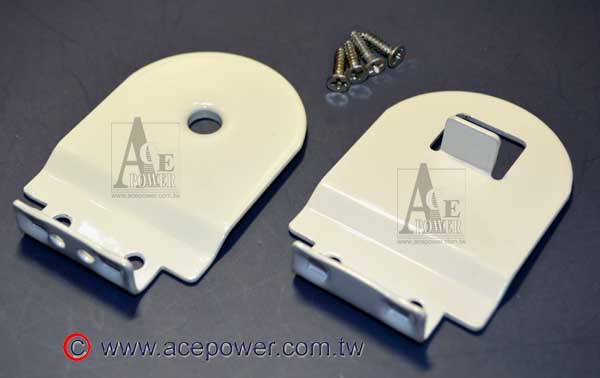

RVB38R-Y3

Installation Matal Bracket, for RB38RS-2 & RB45R-2 Roll blind, for RVB-7P Head Rail for Combine/Silhouette roller blinds, and for RBB-7P Head Rail

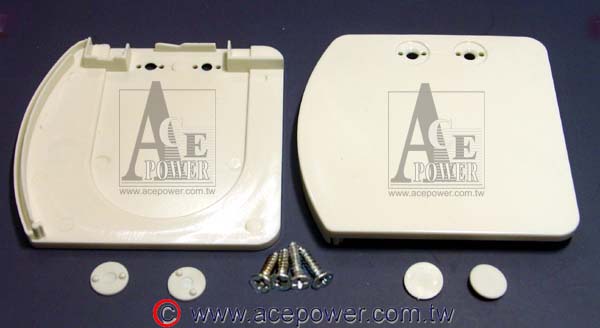

RVB-3CE

End Cap for Alum. Head Rail RVB-7P and Valance C Curve type RVB-7CP, for Combine/Silhouette roller blinds

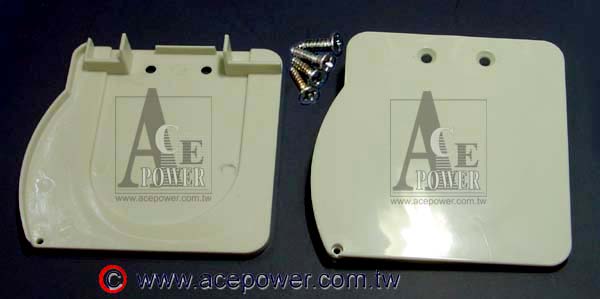

RVB-3SE

End Cap for Alum. Head Rail RVB-7P and Valance S Curve type RVB-7SP , for Combine/Silhouette roller blinds

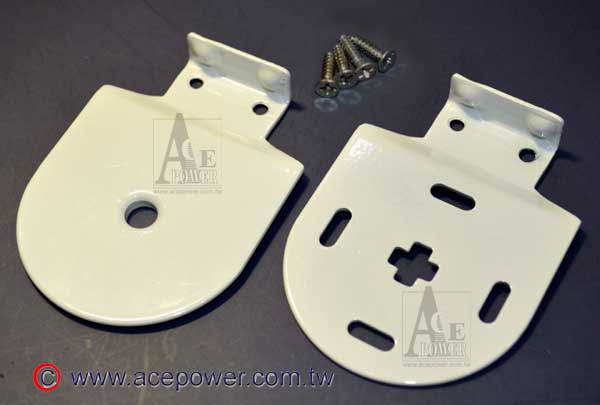

RVB45M-Y3

Installation Matal Bracket, for RB45M Roll blind, for RVB-7P Head Rail for Combine/Silhouette roller blinds, and for RBB-7P Head Rail

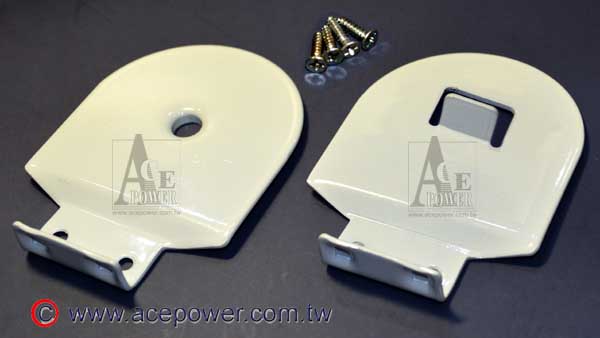

RVB45R-Y3

Installation Matal Bracket, for RB38RS-2 & RB45R-2 Roll blind, for RVB-7P Head Rail for Combine/Silhouette roller blinds, and for RBB-7P Head Rail

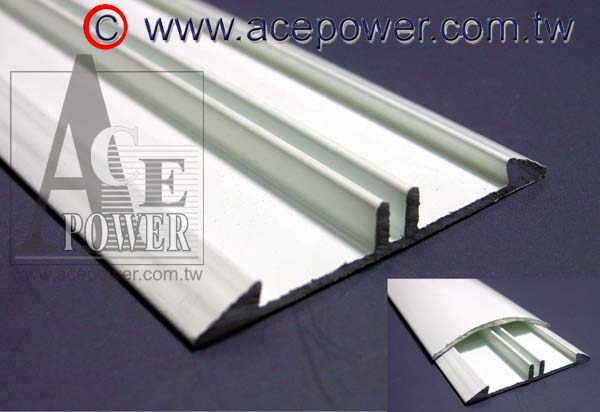

RVB-4P

Alum. Bottom Rail, PAINTED, 5.8m/pc, for Silhouette Roller Blinds

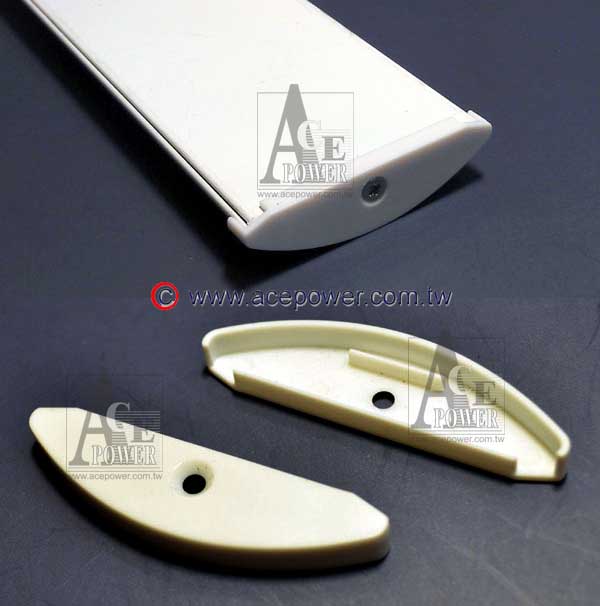

RVB-5A

New End Cap, without screws , for Silhouette roller blinds RVB-4+6 Alum. Bottom Rail

RVB-5AS

New End Cap, with screws , for Silhouette roller blinds RVB-4+6 Alum. Bottom Rail

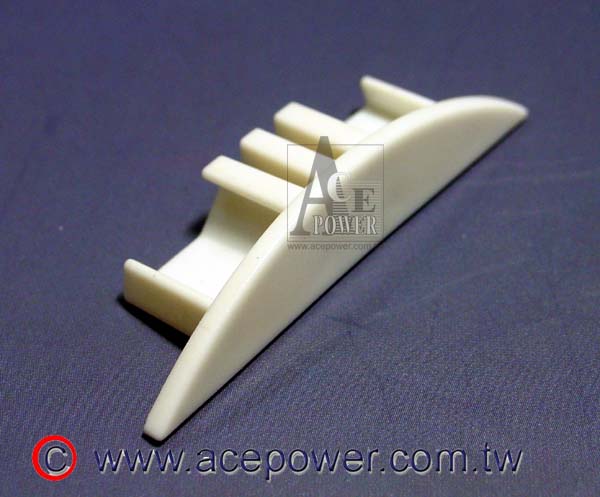

RVB-5E

End Cap ,for Silhouette roller blinds RVB-4P+6P Alum. Bottom Rail

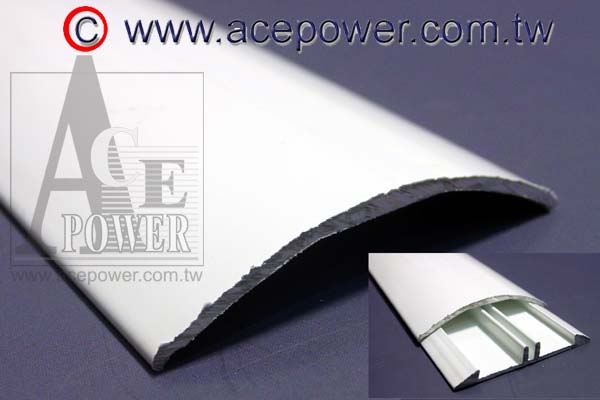

RVB-6P

Alum. Bottom Rail, PAINTED, 5.8m/pc, for Silhouette Roller Blinds

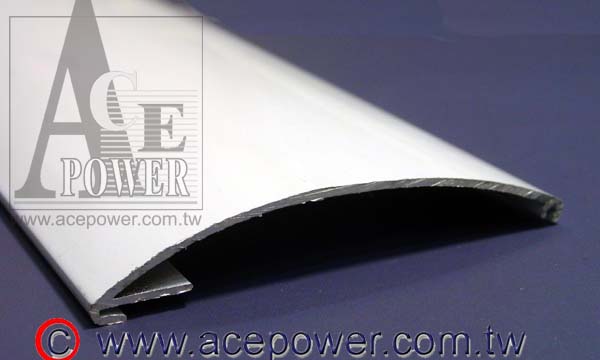

RVB-7CP

Alum. Valance for Head Rail, PAINTED, 5.8m/pc, C Curve type , for Combine/Silhouette roller blinds

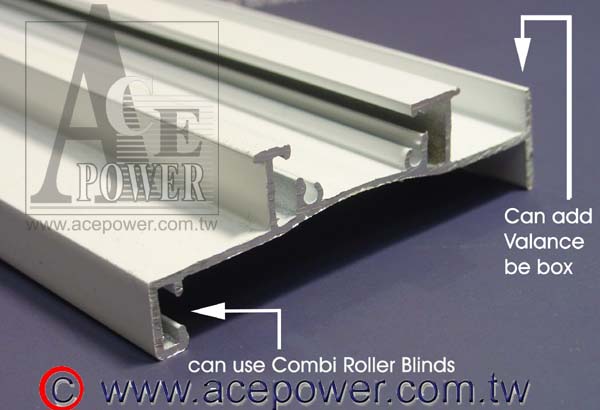

RVB-7P

Alum. Head Rail, PAINTED, 5.8m/pc, can add Valance RVB-7CP & RVB-7SP for Combine/Silhouette roller blinds

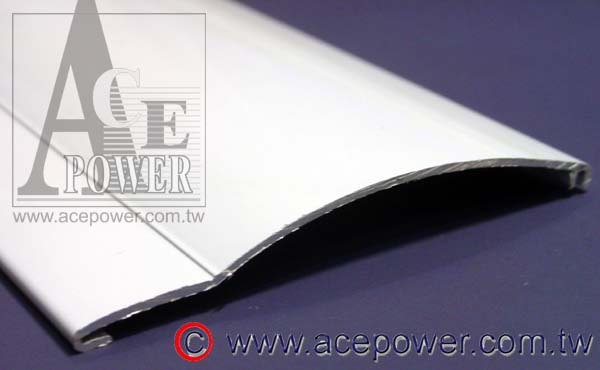

RVB-7SP

Alum. Valance for Head Rail, PAINTED, 5.8m/pc, S Curve type , for Combine/Silhouette roller blinds

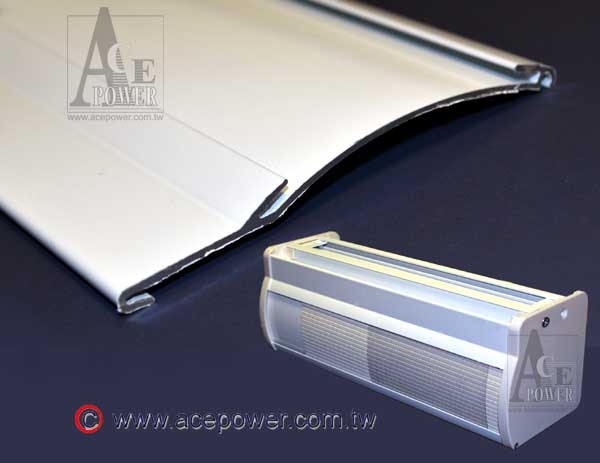

RVB-7SP-FR

Alum. Fabric-Insert Valance for Head Rail, PAINTED, 5.8m/pc, S Curve type , Could Insert Fabric slat, for Combine/Silhouette roller blinds

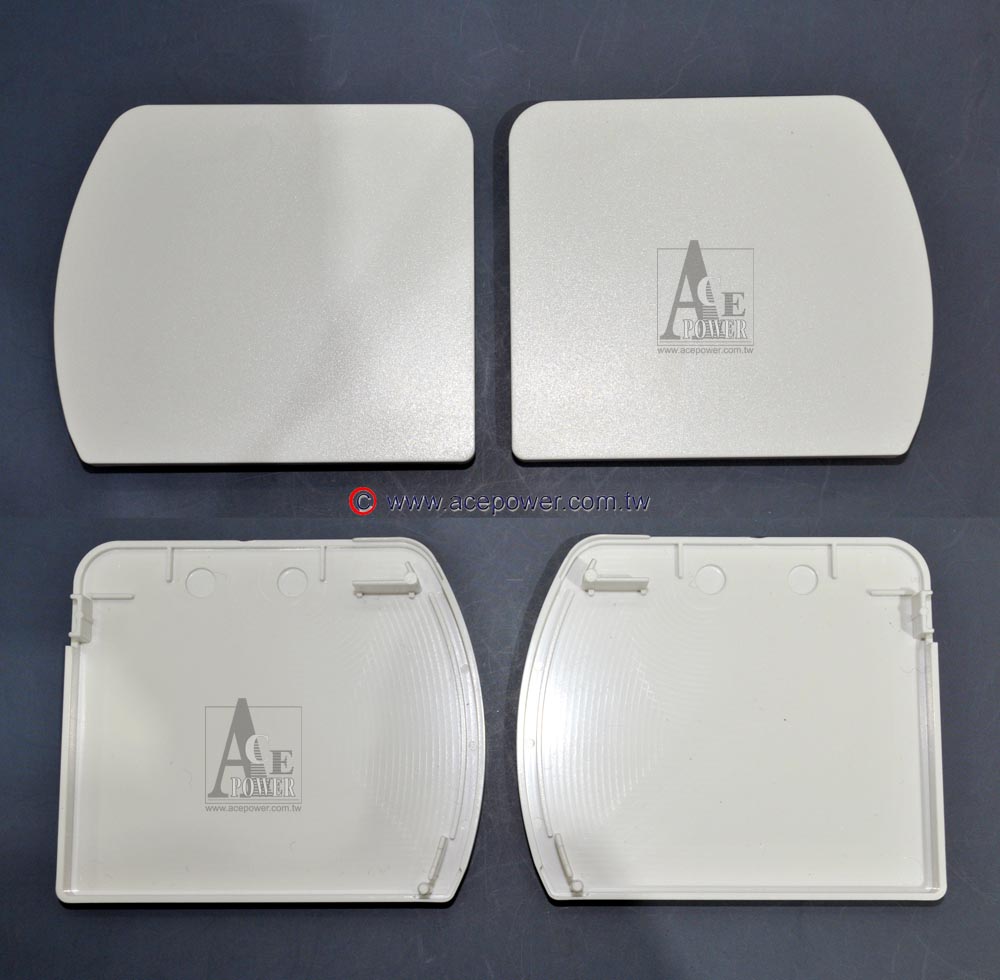

RVC-3CE

End Cap for RVC-7P Alum. Head Rail and Valance C Curve One piece type , for Combine/Silhouette roller blinds

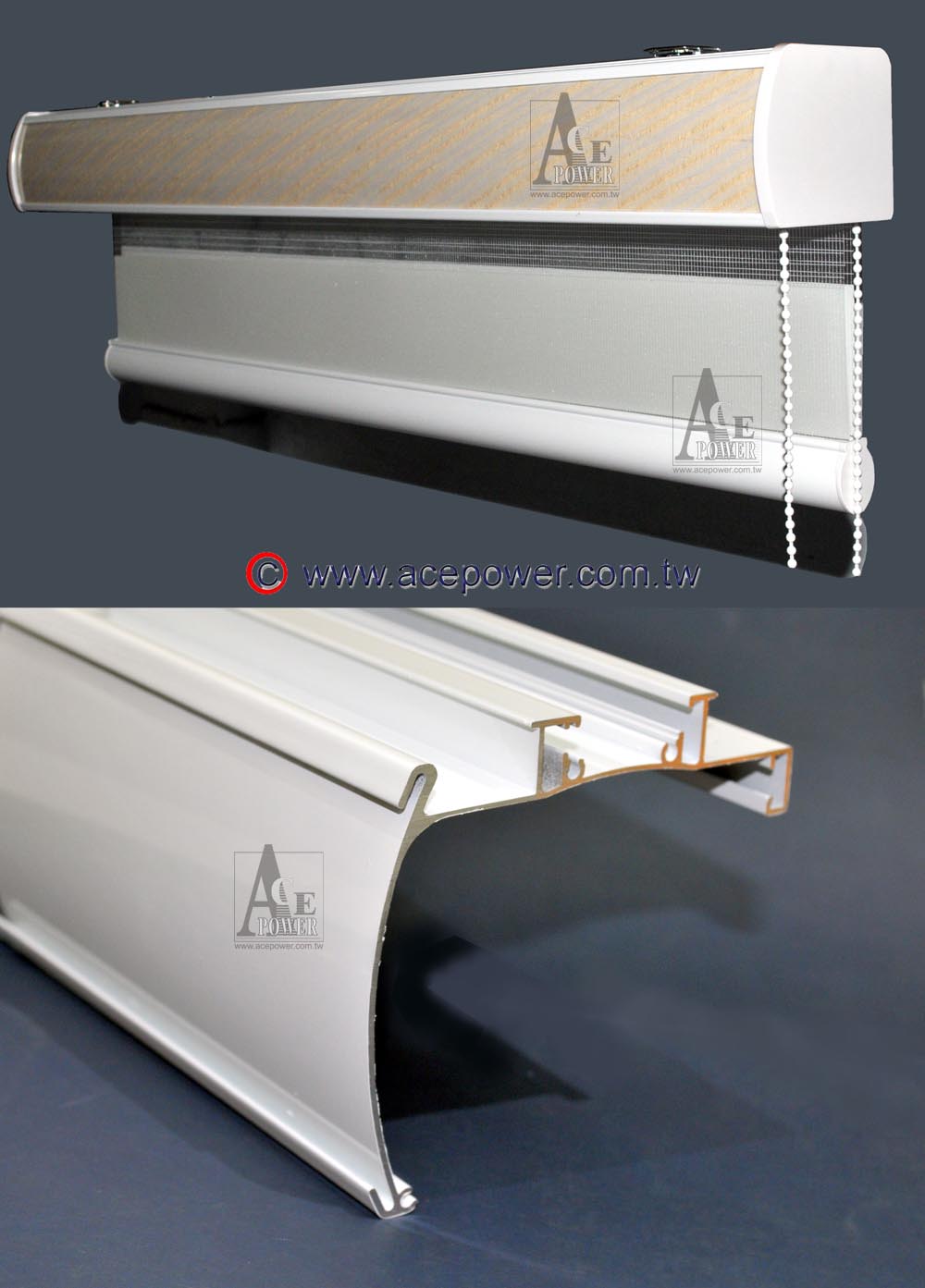

RVC-7P

Alum. Head Rail and Valance C Curve One piece type , for Combine/Silhouette roller blinds, Painted, 5.8m/pc, use 40mm Ceiling Clip bracket

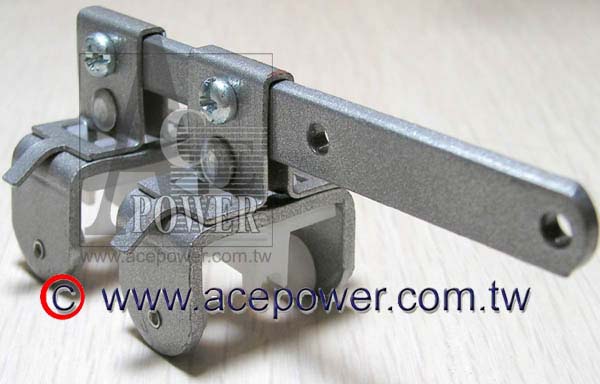

SB22-3MC

Master Carrier

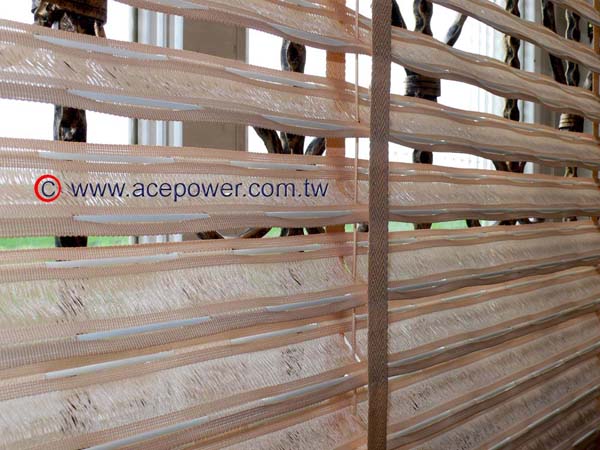

ST_Venetian_Natural

50mm String Slat for Venetian Blinds, Natural

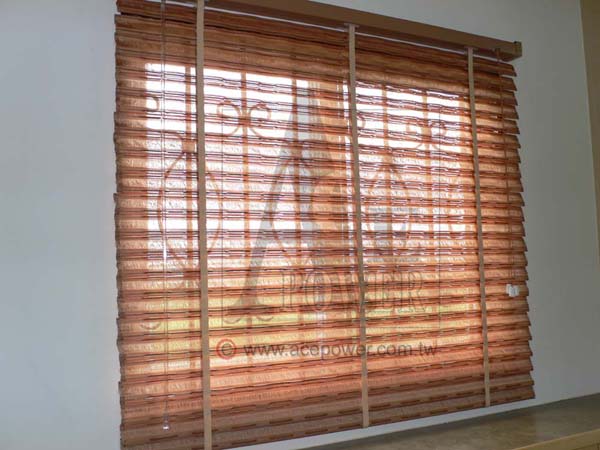

ST_Venetian_Pecan

50mm String Slat for Venetian Blinds, Pecan

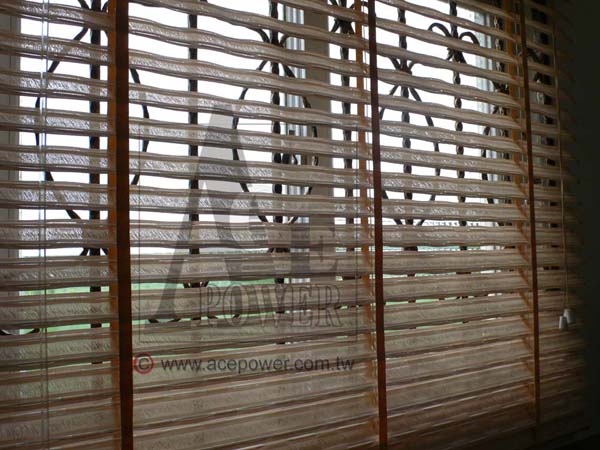

ST_Venetian_Walnut

50mm String Slat for Venetian Binds, Walnut

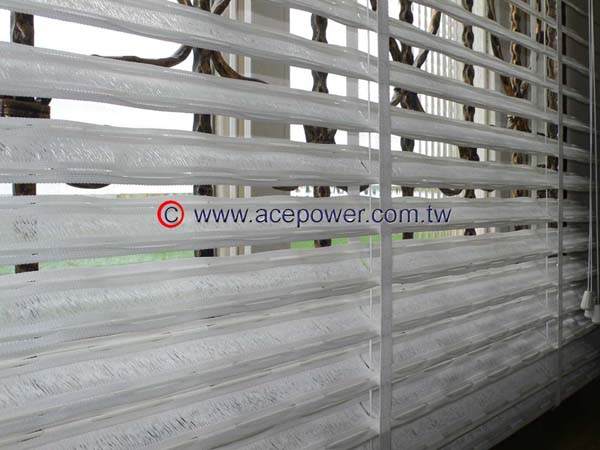

ST_Venetian_White

50mm String Slat for Venetian Blinds, White

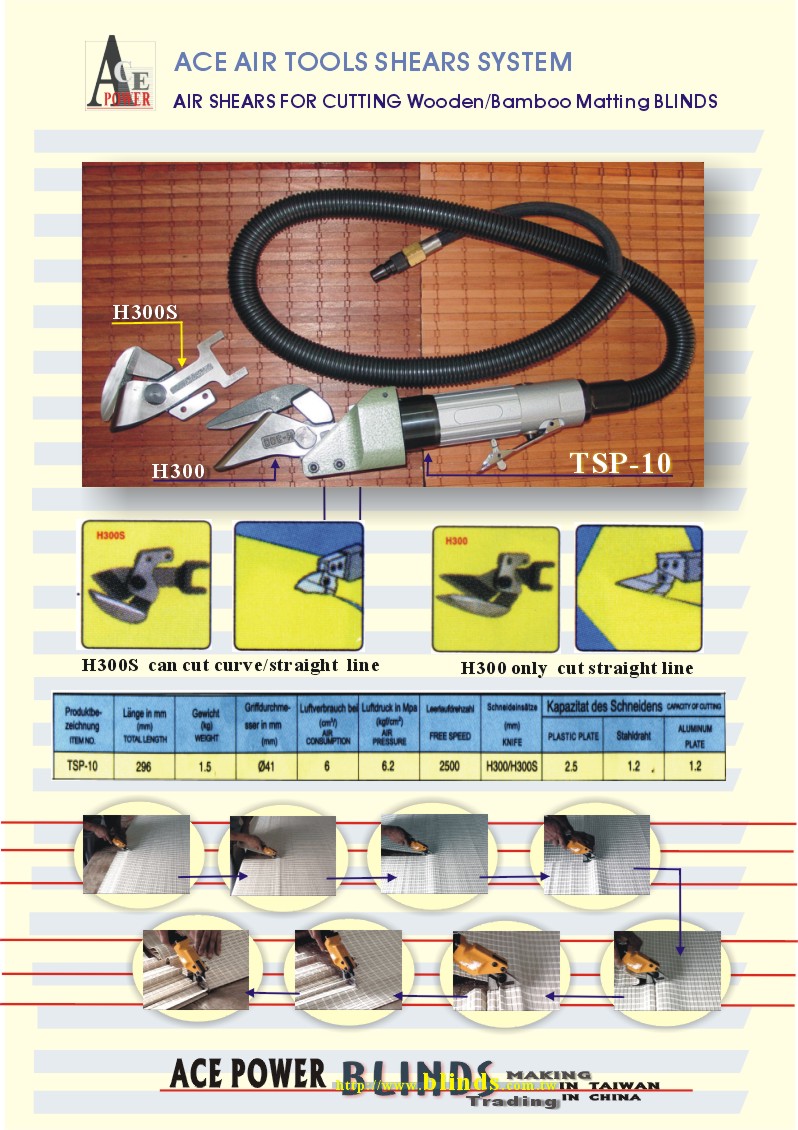

TSP-10

AIR SHEARS FOR CUTTING Wooden/Bamboo Matting BLINDS, not include H300 or H300S Blade

TSP-H300

H300 Blade only cut straight line, for TSP-10 AIR SHEARS FOR CUTTING Wooden/Bamboo Matting BLINDS, not include TSP-10 Body

TSP-H300S

H300S Blade can cut curve/straight line, for TSP-10 AIR SHEARS FOR CUTTING Wooden/Bamboo Matting BLINDS, not include TSP-10 Body

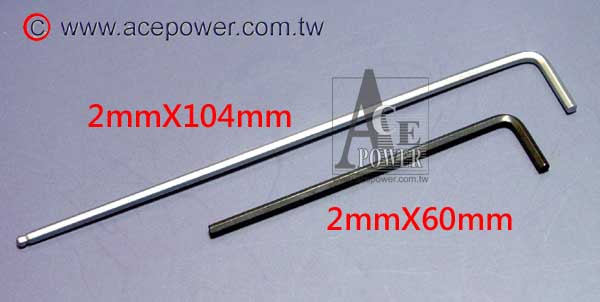

TUN-2X104

Tune-Tool For 2mm inside Hexagon screw 2mmX104mm

TUN-2X60

Tune-Tool For 2mm inside Hexagon screw 2mmX60mm

V16-01-AP

ALUM HEAD RAIL, 19mm x 22mm, PAINTED

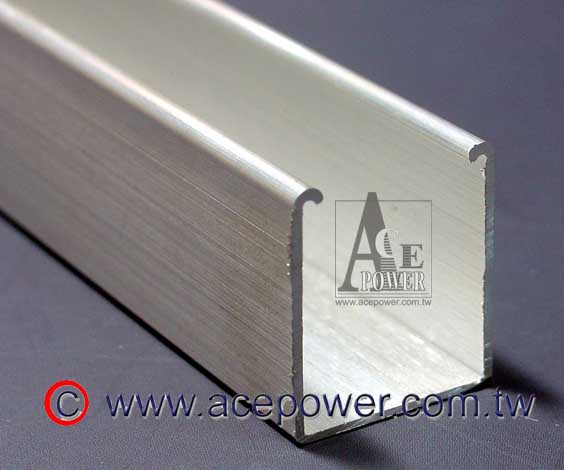

V16-01-AZ

ALUM HEAD RAIL, 19mm x 22mm, PLATED

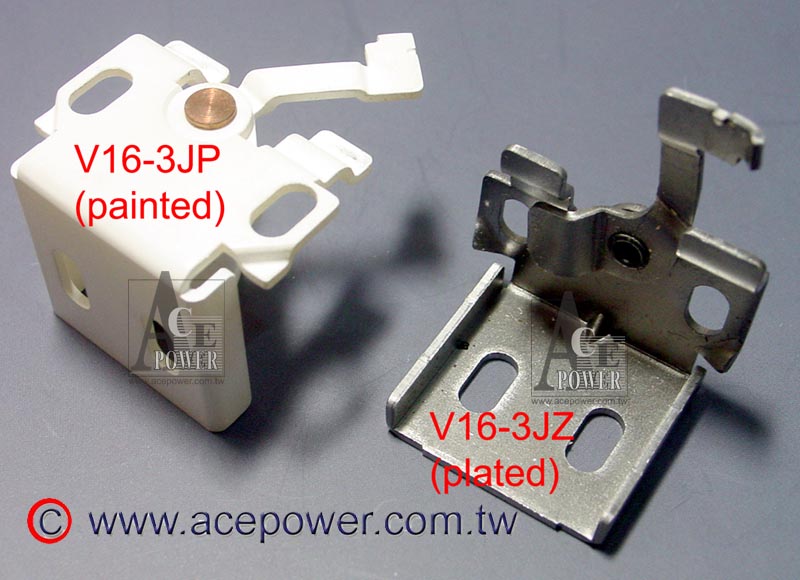

V16-3JP

16mm "L" SWIVEL METAL INST. BRACKET, Solid Rivet, PAINTED

V16-3JZ

16mm "L" SWIVEL METAL INST. BRACKET, Solid Rivet, PLATED

V25-11-5D

Tassel , total length=54mm , Clear and black type , 2pcs /set

V25-11-HT

Tassel and Wand Holder( For Wand, Dia. 7mm, 8mm), color: Clear and black, 4pcs /set

V25-11-HT2

Tassel and Wand Holder( For Wand, Dia. 7mm, 8mm), color: Clear and black, 2pcs /set

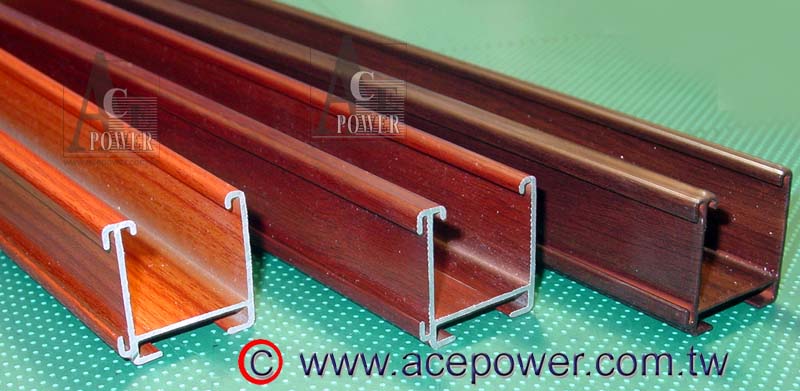

V25T-1AP

Alum. Head rail 30mm x 30mm, Painted, White , can Insert Alum. Slat

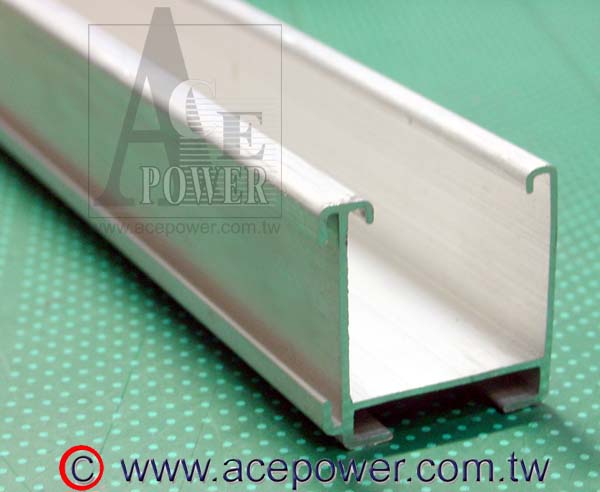

V25T-1AZ

Alum. Head rail 30mm x 30mm, Plated, White , can Insert Alum. Slat

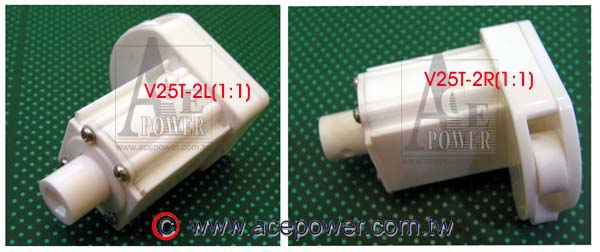

V25T-2L(1:1)

Control Unit : For Chain or Cord operated , Left side, WHITE. Max. Loading:12kgw (1:1), Short Type

V25T-2L(1:4)

Control Unit : For Chain or Cord operated , Left side, WHITE. Max. Loading:12kgw (1:4)

V25T-2R(1:1)

Control Unit : For Chain or Cord operated, Right side, WHITE. Max.Loading: 12kgw (1:1), Short Type

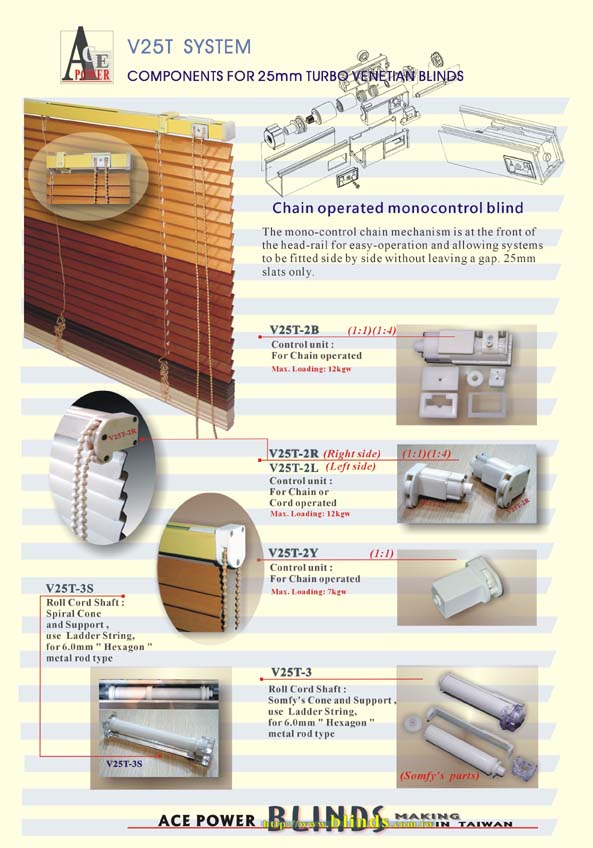

V25T-2R(1:4)

Control Unit : For Chain or Cord operated, Right side, WHITE. Max.Loading: 12kgw (1:4)

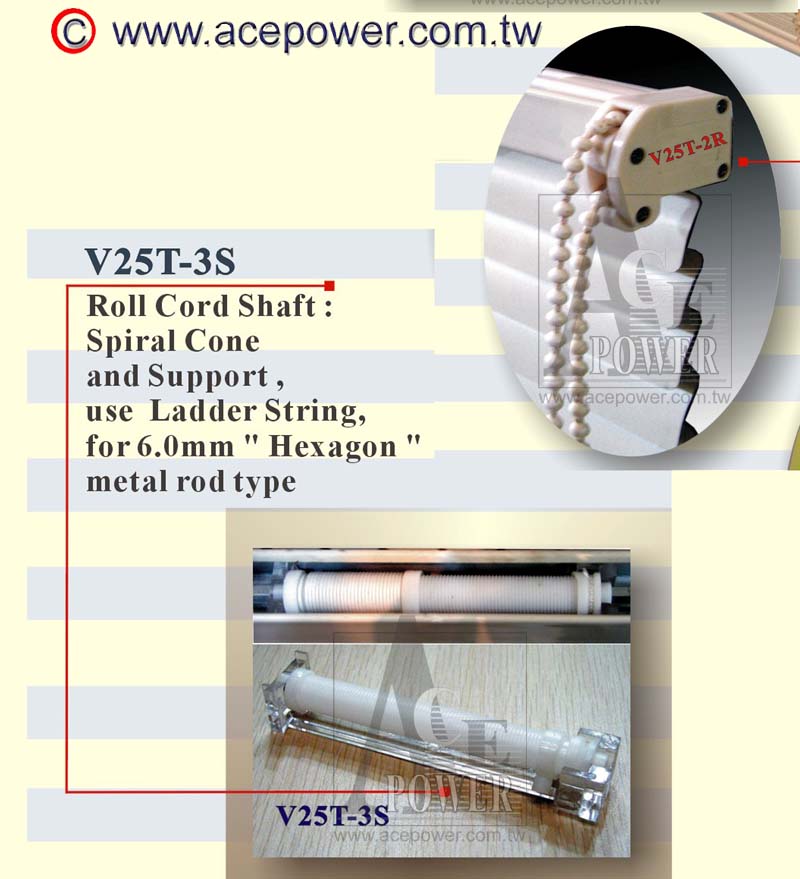

V25T-3S4

Roll Cord Shaft : Spiral Cone and Support, use Ladder String, for 5.0mm Square rod, CAN BE USED IN LADDER STRING

V25T-3S6

Roll Cord Shaft : Spiral Cone and Support, use Ladder String, for 6.0mm Hexagon rod, CAN BE USED IN LADDER STRING

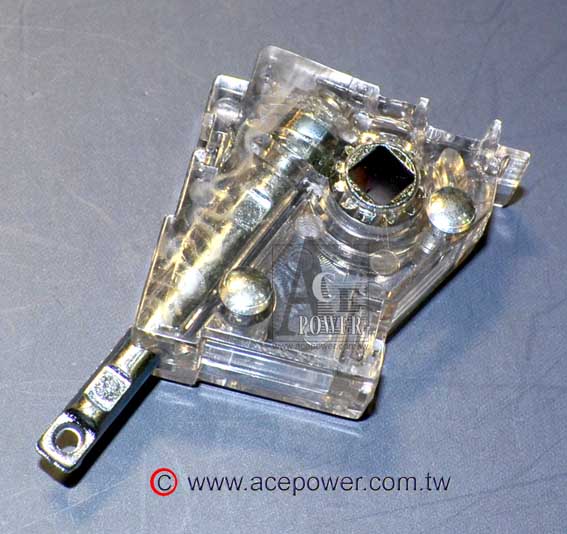

V35-14ZSL

Plastic Wand Tilter W/Zinc Stem, Loop, for 5mm Square Hole

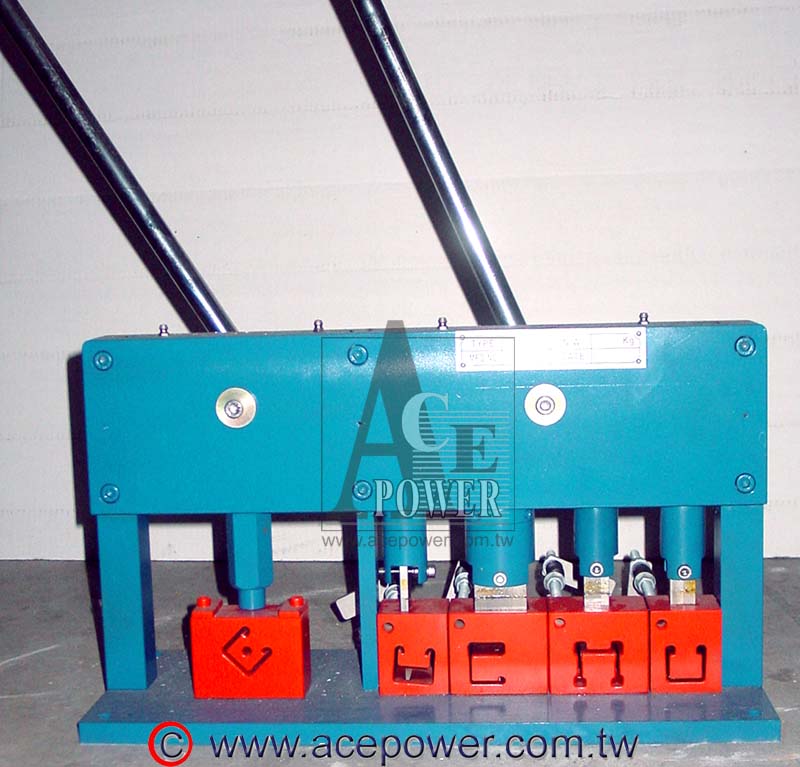

VBH-101-(V25T-2B/-3S)

For 25mm Manual Punching Machinery, with Punching Headrail (V25-01 and V25T-1A), and for V25T-2B(Control unit) Punch and V25T-3S (Roll Cord Shaft) Punch

W28-3-P3T

Tilter unit : For Plastic Spacer, 3 Prong ( Only Tilter Carrier )

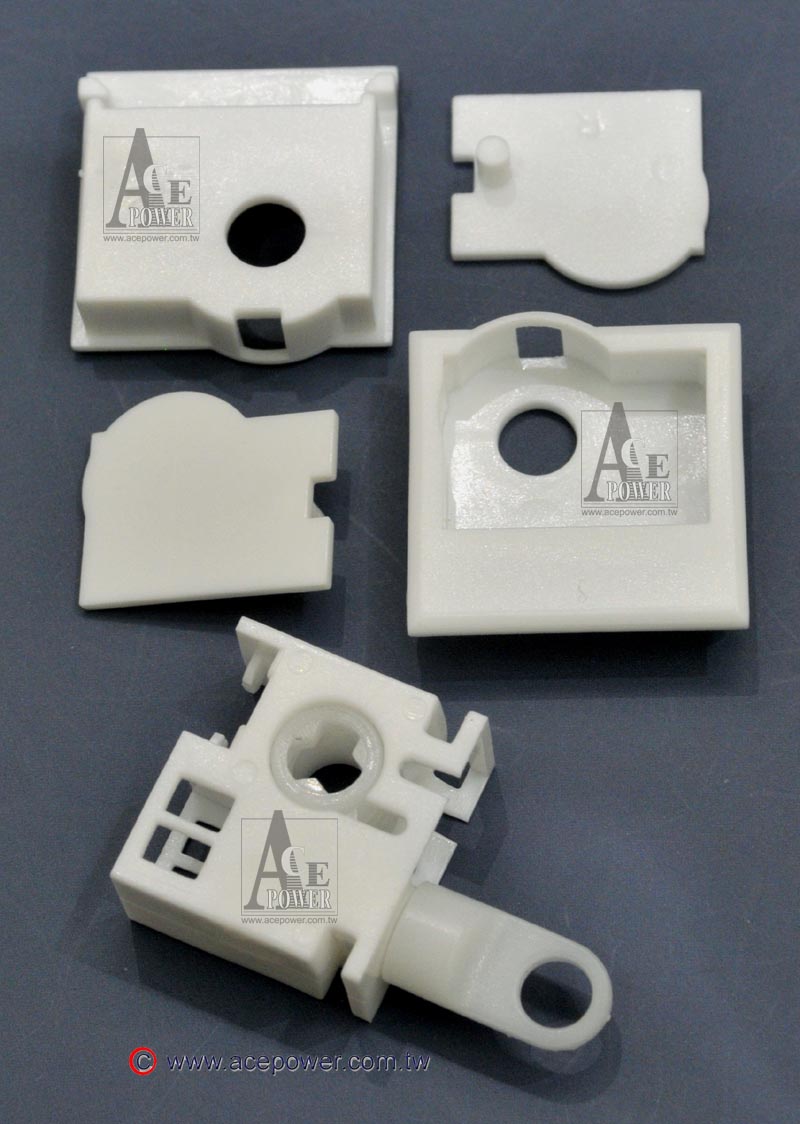

W28-3T-P3

Tilter unit : + IDLE END, with 3 Prong W28-3-P3T Tilter Carrier, For Plastic Spacer type

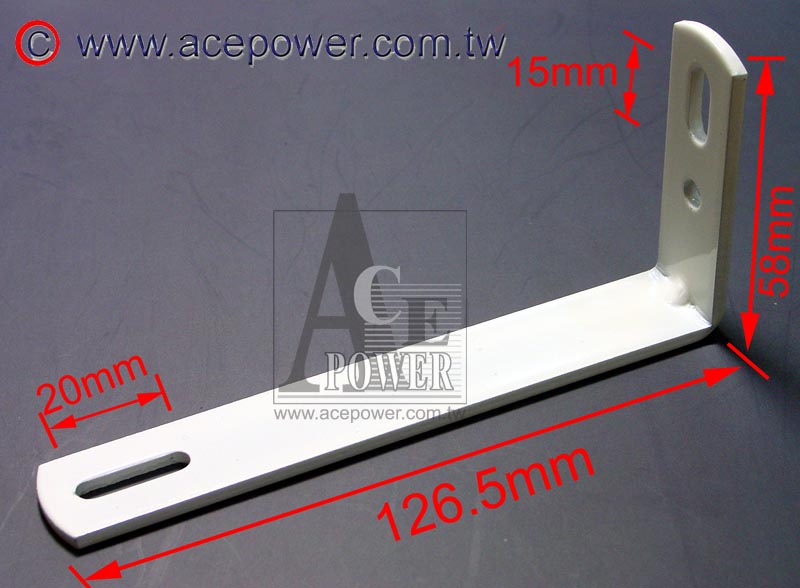

W40-C17P-125

INST. BRACKET, FOR 127mm or Two Blinds, PAINTED, W=20mm,L=125mm, thickness=3mm

W40-C17Z-125

INST. BRACKET, FOR 127mm or Two Blinds, PLATED, W=20mm,L=125mm, thickness=3mm

W40-C9S

String Textile with dia.150mm Cubical hunger, for Vertial Cubical Series, any color

W40-C9S-120

String Textile with dia.120mm Cubical hunger, for Vertial Cubical Series, any color

Washer Tool

Washer Tool For Washer WB-11-3 (11.5mm) & WB-11-4 (15mm) and RB-12-PC PLASTIC STOP RING

WB-03T-B

New Double Way, Tilter unit, For WB-01T/ WB-01L/ WB-01C Tall/Low/Curve profile

WB-03T-BH

New Double Way, Tilter unit, For WB-01T/ WB-01L/ WB-01C Tall/Low/Curve profile, for Hook type Alum. Rod (WB-WA-HH), big hole

WB-03T-BHH

New Double Way, Tilter unit, For WB-01T/ WB-01L/ WB-01C Tall/Low/Curve profile, for Hook type Alum. Rod (WB-WA-HH), big hole, With Hook and Holder
